silicone 5555 Interconnect Electronic Hobby Kit

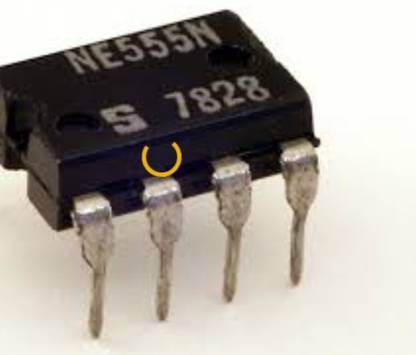

You've provided an image of a 555 Timer IC. Let's break down its full description and uses. Full Description of the 555 Timer IC The 555 timer IC is one of the most popular and versatile integrated circuits ever produced. It's a highly stable controller capable of producing accurate time delays or oscillation. Here's a breakdown of its key characteristics: * Package Type: The image shows a DIP (Dual In-line Package), specifically an 8-pin DIP. This is a common package for through-hole mounting on PCBs. * Part Number: The IC in the image is labeled "NE555N". * "NE" often indicates a commercial temperature range device. * "555" is the core part number for the timer IC. * "N" typically denotes a plastic DIP package. * Pins: An 8-pin 555 timer has the following pinout (though this isn't directly visible in your image, it's standard): * GND (Ground): Connected to the negative supply rail. * TRIGGER: The input that causes the output to go high (timing cycle to start) when its voltage falls below 1/3 VCC. * OUTPUT: The output pin, which can be high or low. * RESET: Can be used to terminate the timing cycle prematurely by applying a low voltage. If not used, it's typically connected to VCC. * CONTROL VOLTAGE: Allows external control of the threshold and trigger levels. An external voltage applied here can modify the timing period. If not used, a small capacitor (e.g., 0.01µF) is often connected to ground to bypass noise. * THRESHOLD: The input that causes the output to go low (timing cycle to end) when its voltage rises above 2/3 VCC. * DISCHARGE: An open-collector output that is used to discharge an external timing capacitor. * VCC (Supply Voltage): Connected to the positive supply rail (typically +4.5V to +16V). * Internal Structure: The 555 timer internally consists of: * Two comparators (one for trigger, one for threshold). * A flip-flop. * A discharge transistor. * A voltage divider network (setting 1/3 VCC and 2/3 VCC reference voltages). * An output stage. * Operating Modes: The 555 timer can operate in three main modes: * Monostable (One-Shot) Mode: Produces a single output pulse of a specific duration in response to a trigger input. * Astable (Free-Running) Mode: Produces a continuous, oscillating square wave output. * Bistable (Schmitt Trigger) Mode: Less common, acts as a basic flip-flop. Common Uses of the 555 Timer IC The versatility of the 555 timer makes it suitable for a vast array of applications. Here are some of its most common uses: In Monostable Mode (One-Shot): * Pulse Generation: Creating single pulses of a defined width. * Missing Pulse Detection: Detecting when a regular pulse is absent. * Touch Switches: Responding to touch for a set duration. * Debouncing Switches: Eliminating multiple trigger events from a single physical switch press. * Frequency Divider: Creating a slower pulse train from a faster one. * Timer Circuits: Providing precise time delays for various applications (e.g., automatic turn-off for lights, delays in control systems). * Measurement: Converting a resistance or capacitance value into a time period for measurement. In Astable Mode (Oscillator): * Square Wave Oscillators: Generating continuous square wave signals for various purposes. * LED Flashers/Blinkers: Making LEDs blink at a specific rate. * Pulse Width Modulation (PWM): Generating pulses with varying widths for motor speed control, dimming LEDs, etc. * Tone Generators: Producing audible tones (e.g., in toys, alarms). * Clocks for Digital Circuits: Providing a timing signal for simple digital systems. * Frequency Shift Keying (FSK) Generators: Modulating data onto a carrier wave by shifting its frequency. * Inverters/DC-DC Converters: As part of circuits that convert DC voltage to AC or boost/buck DC voltage. Other/General Uses: * Alarms: As the core of simple alarm circuits. * Control Systems: Providing timing or oscillation for automated processes. * Educational Projects: A staple in electronics education due to its simplicity and wide applicability. The 555 timer's robustness, low cost, and ease of use have cemented its place as an iconic component in electronics.
