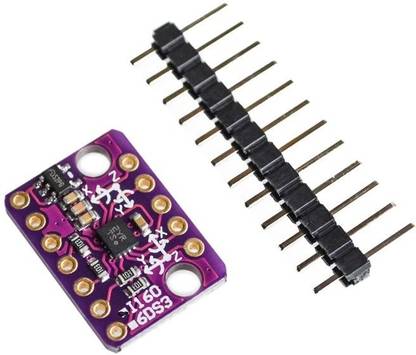

Solnoi Electronics BMI160 GY-BMI160 6DOF 6-axis Rate Gyro Gravity Accelerometer Sensor Module IIC I2C SPI Electronic Components Electronic Hobby Kit

The module uses new BMI160 6-axis inertial motion sensor in a MEMS sensor package that integrates the top 16-bit 3-axis accelerometer with an ultra-low-power 3-axis gyroscope. The module can output acceleration data (acceleration values detected by the device in the X, Y, and Z directions) and gyroscope data (the speed at which the device rotates around the X, Y, and Z axes). When accelerometers and gyroscopes operate in full-speed mode, typical power consumption is as low as 950?A, which is only 50% or less of the power consumption of similar products on the market. Designed for smartphones, tablets, and wearable devices, the BMI160 includes a built-in smart step counter algorithm that reads the number of steps directly through the registers. The built-in 3-axis acceleration and 3-axis gyroscope enable motion detection such as running and fitness. Module built-in LDO power management chip, VIN supports 3.2~6V wide voltage supply, also has a separate 3.3V interface, compatible for Arduino 3.3V and 5V controller direct drive. Working voltage: 3.2V~6V Current consumption: <1mA Interface mode: 2.54 pitch pin header Acceleration optional ruler: ±2g/±4g/±8g/±16g Gyro optional scale: ±125°/s, ±250°/s, ±500°/s, ±1000°/s, ±2000°/s Accelerometer zero drift: ±40mg Gyroscope zero drift: ±10°/s Programmable frequency: 25/32Hz~1600Hz 6D detection and positioning 16-bit data output Impact resistance: 10,000 gx 200?s 2 independent programmable interrupt generators Built-in 1024 byte FIFO Working temperature: -40 ° C ~ +85 ° C
