Solnoi Electronics Speed Measuring Sensor Counter Motor test module Micro Controller Board Electronic Hobby Kit

Solnoi Electronics Speed Measuring Sensor Counter Motor test module Micro Controller Board Electronic Hobby Kit

Share

Solnoi Electronics Speed Measuring Sensor Counter Motor test module Micro Controller Board Electronic Hobby Kit

Be the first to Review this product
₹248
450
44% off
i
Available offers
  • Bank Offer5% cashback on Flipkart Axis Bank Credit Card upto ₹4,000 per statement quarter
    T&C
  • Bank Offer5% cashback on Axis Bank Flipkart Debit Card up to ₹750
    T&C
  • Bank OfferFlat ₹10 Instant Cashback on Paytm UPI Trxns. Min Order Value ₹500. Valid once per Paytm account
    T&C
  • Delivery
    Check
    Enter pincode
      Delivery by26 Jul, Saturday
      ?
      if ordered before 4:59 PM
    View Details
    Highlights
    • Power Source: DC
    • Material: Plastic
    • Weight: 8
    Services
    • Cash on Delivery available
      ?
    Seller
    ANElectronics
    3.9
    • 7 Days Return Policy
      ?
  • See other sellers
  • Description

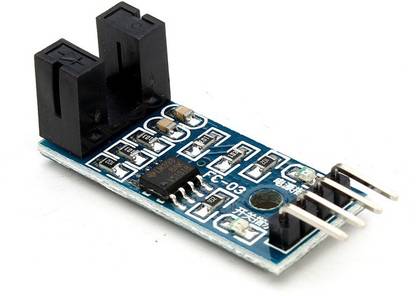

    Speed Measuring Sensor Counter Motor test module slot type optical coupling for Arduino XD-03 USES:Speed Measuring Sensor-1 Widely used in motor speed detection, pulse count, the position limit, etc. The DO output interface can be directly connected to a micro-controller IO port, if there is a block detection sensor, such as the speed of the motor encoder can detect. DO modules can be connected to the relay, limit switch, and other functions, it can also with the active buzzer module, compose alarm. Features using imported trough type optical coupling sensor, groove width 5 mm. the output state light, lamp output level, the output low level light. covered, output high level;Without sunscreen, the output low level. the comparator output, signal clean, good waveform, driving ability is strong, for more than 15 ma. the working voltage of 3.3 V to 5 V output form: digital switch output (0 and 1) a fixed bolt hole, convenient installation small board PCB size: 3.2 cm x 1.4 cm use the LM393 wide voltage comparator Module
    Read More
    Specifications
    In The Box
    • 1 pcs of Speed Measuring Sensor Counter Motor test module
    General
    brand
    • Solnoi Electronics
    Model Number
    • Speed Measuring Sensor Counter Motor test module
    Type
    • Micro Controller Board
    ROHS Complaint
    • No
    Material
    • Plastic
    Dimensions
    Width
    • 3.2 cm
    Height
    • 1.4 cm
    Weight
    • 8
    Power Features
    Battery Type
    • None
    No Of Batteries
    • None
    Battery Size
    • None
    Power Source
    • DC
    Other Power Features
    • None
