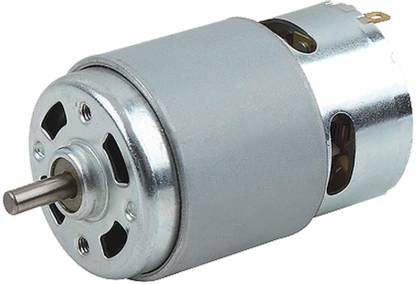

SS ROBOTICS RS 775 Motor 12V 24V DC High 7000 RPM Torque Brushed Motor Control Electronic Components Electronic Hobby Kit

Rs775 high speed & high torque motor product description: high torque & heavy duty motor. Rated voltage current : dc 24 volt torque - 300 - 1300 g cm protect feature - totally enclosed output power - 7 - 200 w operating voltage: dc 6-48 volt. Motor shaft diameter: 5 mm approx speed - 15000 rpm - 25000 rpm distance between screw holes: 30 mm diameter of the motor: 44 mm approx length of the motor (Body): 67 mm approx length of shaft: 15 mm approx main colour: silver tone material: metal net weight: 350 gm approx cylindrical shape and with 5 mm diameter shaft and 2 pin connectors. Great substitute for the rusty or damaged dc motor on the machine. Comes with magnetic shield (As Shown in the Image). To run this motor, you would need a 12 or 24 volt dc power supply. The amperage rating on it should be 2 amp or above. Alternatively, you can also directly connect it to any 12 volt battery. Perfect for various diy applications.
