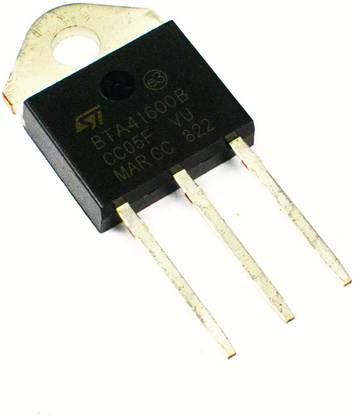

STM BTA41-600B TRIAC Electronic Components Electronic Hobby Kit

Low Thermal Resistance with Clip Bonding High Commutation Capability. Available in high power packages, the BTA/ BTB40-41 series is suitable for general purpose AC switching. BTA41 Triac can be used as an ON/OFF function in applications such as static relays, heating regulation, induction motor starting circuits or for phase control operation in light dimmers, motor speed controllers. They provide a superior performance in surge current handling capabilities. By using an internal ceramic pad, the BTA series provides voltage insulated tab (rated at 2500V RMS) complying with UL standards. Features of BTA41 TRIAC High current TRIAC Low thermal resistance with clip bonding High commutation capability BTA series UL1557 certified (File ref : 81734) Packages are RoHS (2002/95/EC) compliant Applications of BTA41 TRIAC On/off function in static relays, heating regulation, induction motor starting circuits Phase control operations in light dimmers, motor speed controllers, and similar
