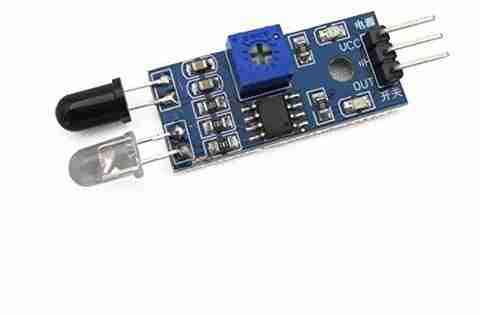

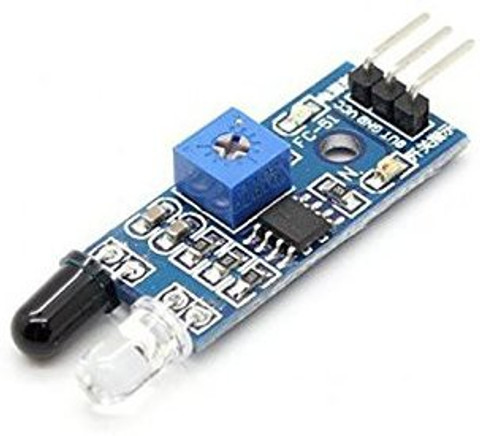

Stookin IR Infrared Obstacle Avoidance Sensor Module for Smart Ca...

more

Can be used for 3-5V DC power supply modules . When the power is turned on, the red power Using the comparator LM393, stable The output port OUT sensor module can be directly connected to the microcontroller IO port , you can directly drive a 5V relay ; Connection : VCC-VCC; GND-GND; OUT-IO active infrared sensors to detect the reflected , and thus the shape of the reflectivity of the target detection range is critical . The minimum detection distance which black , white maximum ; small objects from a small area When the module detects an obstacle in front of the signal , the green indicator light on the board level , while low-level continuous output signal OUT port , the module detects the distance 2 ~ 30cm, detection angle 35 °
