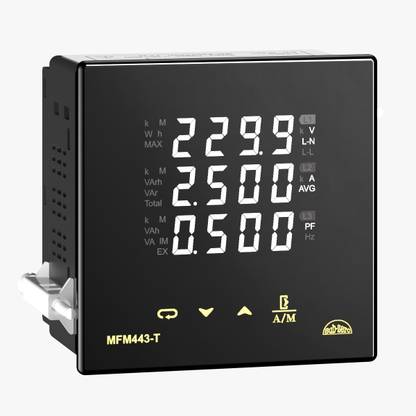

MFM433-T 3 Phase Multifunction Panel Meter LED Display
SUBZERO MFM433-T 3 Phase Multifunction Panel Meter LED Display
Buy at ₹1,898
Apply offers for maximum savings
Apply offers for maximum savings!
Product highlights
Sales Package
1 display
Brand
SUBZERO
Model Number
MFM433-T 3 Phase Multifunction Panel Meter
Power Requirement
90-270VAC
Backlight
White
Display Technology
Digital Display
Display Type
LED
Display Size
3 inch
All details
Features, description and more
Specifications
Description
Warranty
Manufacturer info
Show More
In the Box
Sales Package
1 display
General
Brand
SUBZERO
Model Number
MFM433-T 3 Phase Multifunction Panel Meter
Power Requirement
90-270VAC
Backlight
White
Display Technology
Digital Display
Display Type
LED
Display Size
3 inch
Display Color
White
Other Features

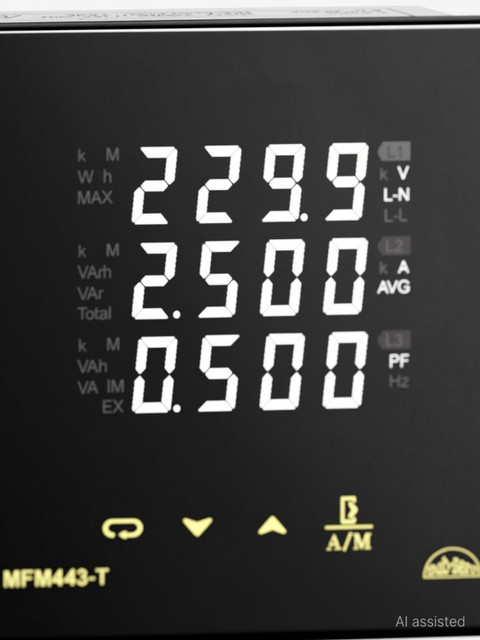

7 Segment LED Display 4 digit, 3 line x 13 mm 02/ Power Supply 230 Vac, ± 10%, 50/60Hz 03/ Electrical Connection 3Ø–4W, 3Ø-3W, 2Ø-3W, 1Ø-2W 04/ Measurement Type Type1: Voltage (L-L, L-N), Type2: Current (Individual/Average), Type3: Frequency, Type4: Power Factor (Individual/Average), Type5: Active, Reactive & Apparent Power (Individual/Total), Type6: Active, Reactive & Apparent Energy (Total) 05/ Range Input Rated Voltage1: 11 to 500 VAC (L-N), Input Rated Voltage2: 19 to 866 VAC (L-L), Input Rated Current: Nominal 5A AC, CT Primary: 5A to 10kA, CT Secondary: 5A, PT Primary: 100V to 500kV, PT Secondary: 100 to 500 VAC (L-L) 06/ Resolution Energy: 0.01k, 0.1k, 0.01M, 0.1M, 1M(Depending upon CT ration and PT ratio) Current, voltage, Power: Auto resolution, Power Factor: 0.001 07/ Accuracy Voltage, Current Avg: ±0.5% of F.S., Frequency: ±0.1Hz ,Mounting Type Panel Mount 010/ Panel 92 x 92mm
Net Quantity
1
Dimensions
Length
15 cm
Width
15 cm
Height
15 cm
Weight
0.5 kg
Other Dimensions
-
See more

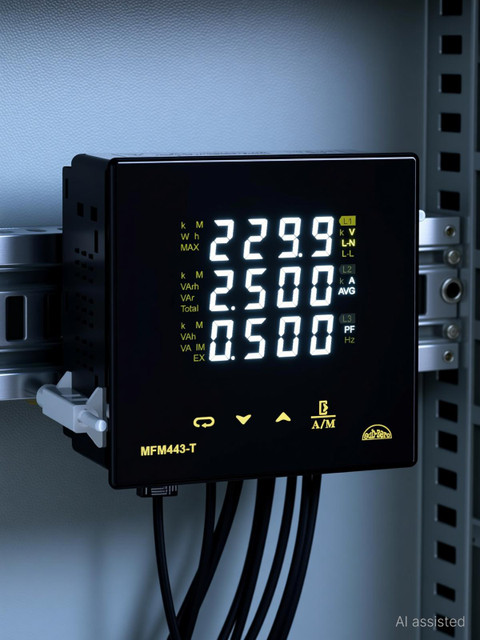

3 Phase Multi function panel meter Iconic 7 Segment Display 3ф(True RMS)Voltage and Current 3Ø–4W, 3Ø-3W, 2Ø–3W, 1Ø–2W Programmable CT Secondary Auto/ Manual Mode Run Hour Power Factor Application: Industrial LT Panel, Motor Control Centers, Distribution control and Relay Panels, Air Conditioning and Refrigeration Panels, Genset Panels, Generation, Transmission and Distribution Panels, Special OEM Application.
See more
Warranty Summary
na
Covered in Warranty
1 year warranty
Not Covered in Warranty
Accidental damage, water damage,etc.
Warranty Service Type
1 year warranty
Generic Name
Electronic Display
Country of Origin
India
Name and address of the Manufacturer
subzero pvr controls
Name and address of the Packer
System Controls
