Subzero SZ 7524-P Temperature Controller Worldwide Adaptor (Black)

Price: Not Available

Currently Unavailable

Highlights

Converter
Power Consumed: 230 V AC Standard. Other models with 12VDC, 24VDC, 110VAC on request.
Suitable For: Commercial and Industrial Use

Description

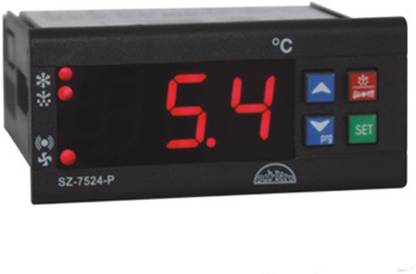

Subzero SZ 7524-P is a Temperature Controller dedicated to applications in refrigeration. The defrost cycle is accomplished by turning off the compressor at time intervals chosen by the user. Pt100, Pt1000 and thermistor sensors inputs available. Adjust for ON and OFF durations. Auto defrost at programmable intervals. Manual Defrost key in the front pannel.

Specifications

General

Set Content	Worldwide Adaptor
Brand	Subzero
Model Name	SZ 7524-P Temperature Controller
Type	Converter
Series	75XX Series
Color	Black
Ideal For	Commercial and Industrial Use
Power Requirement	230 V AC Standard. Other models with 12VDC, 24VDC, 110VAC on request.
Style Code	TC
Color Code	Black

Additional Features

Mounting: Flush panel mounting with fasteners., Data Storage: Non-Volatile EEPROM memory, Connection: Screw terminal blocks, < 2.5sq mm one wire/terminal only., Accuracy: +/- 1°C, Display: 3X14.2 MM (0.56”)LED., Alarm (Buzzer): SZ-B75. 10V,10mA., Input: NTC probe, SZ-N75 ; Output: 3 SPDT relay, 8(3)Amps, 250 V AC, Measuring Range: -40.0°C to +50.0°C, Resolution: 1°C / 0.1°C
