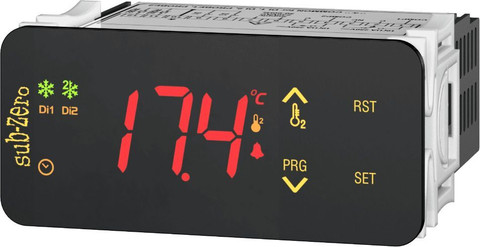

SZ-7552-T Temperature Controller Touch Display with 2 Compressor LED Display
SUBZERO SZ-7552-T Temperature Controller Touch Display with 2 Com...more
Buy at ₹1,410
Apply offers for maximum savings
Apply offers for maximum savings!
Product highlights
Sales Package
product
Brand
SUBZERO
Model Number
SZ-7552-T Temperature Controller Touch Display with 2 Compressor
Power Requirement
90-270VAC
Backlight
Red
Display Type
LED
Display Size
2 inch
Display Color
Red
All details
Features, description and more
Specifications
Description
Warranty
Manufacturer info
Show More
In the Box
Sales Package
product
General
Brand
SUBZERO
Model Number
SZ-7552-T Temperature Controller Touch Display with 2 Compressor
Power Requirement
90-270VAC
Backlight
Red
Display Type
LED
Display Size
2 inch
Display Color
Red
Other Features

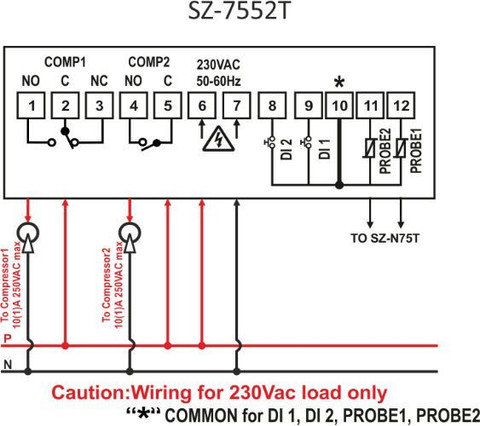

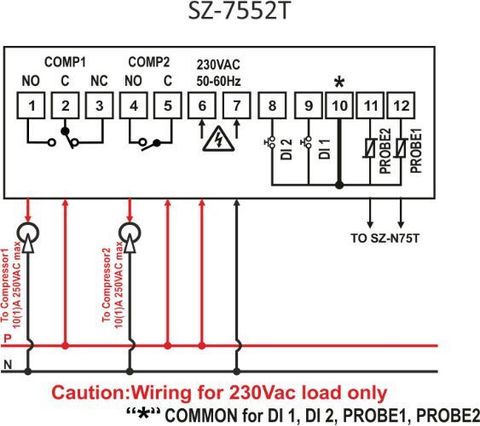

7 Segment LED Display, 3 x 17mm 02/ Power Supply 230Vac 03/ Probe Input 2 NTC 04/ Temperature 0.0°C to 50.0°C or 0°C to 50°C 05/ Resolution 0.1°C or 1°C (Settable) 06/ Input Potential Free: Compressor1 Fault, Compressor2 Fault 07/ Output Compressor1 10(1)A, Compressor2 10(1)A 08/ Housing 78(W) x 36(H) x 80(D)mm 09/ Mounting Type Panel Mount 010/ Panel 71 x 29mm
Net Quantity
1
Dimensions
Length
14 cm
Width
14 cm
Height
14 cm
Weight
0.4 kg
Other Dimensions
-
See more
Temperature Controller – 2 Compressor Temp. Range 0.0 to 50.0ºC Individual Set points, Differentials and Time Delays for Compressor Selectable sequential or Independent working Modes of Compressors 0.1 Resolution for Precise Control Cooling & Heating Mode Selection Run Hour Equalization Touch Sensitive Keypad Individual Digital Input for Compressor Fault Cycling of Compressors to avoid overloading one compressor Load sharing between the Compressors Delay between two Compressors starts and Stops to avoid surge Auto Operation in case of Sensor Failure/Error High & Low Temperature Logs Application: Chillers
See more
Warranty Summary
1 Year Warranty against manufacturing defects, Hardware malfunctions, et.
Covered in Warranty
1 year warranty
Not Covered in Warranty
Accidental damage, water damage,etc.
Warranty Service Type
1 year warranty
Generic Name
Electronic Display
Country of Origin
India
Name and address of the Manufacturer
subzero pvr controls
