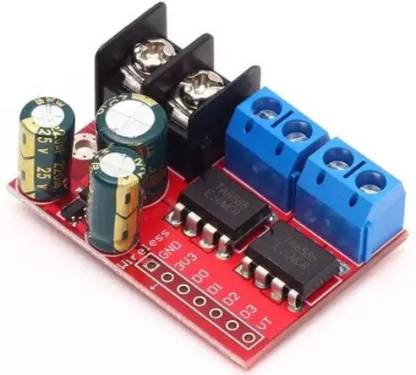

SunRobotics 5A 3V-14V Dual DC Motor Drive Module Remote Control Voltage Reverse PWM Speed Regulation Double H Bridge Super L298N 5AD Electronic Components Electronic Hobby Kit

5A Dual DC Motor Drive Remote Control Double H-Bridge PWM Speed Control Module Product Overview 5A Dual DC Motor Drive Remote Control Double H-Bridge PWM Speed Control Module Highlights: 1.1. Two motors can be independently controlled, each channel can output 5A, peak 9A, standby current is only 10uA; 1.2. Wide voltage range of 3-14 v, signal voltage range of 2.2-6 v, 3.3 v and 5 v levels can be satisfied; 1.3. The board provides 3.3v 100ma power supply to the power consumption of your operating system, and can also be used with 433m wireless module remote engine, or remote control other loads. Two-way H-bridge motor drive, can drive two DC motors or a 4-wire two-phase stepper motor at the same time. Power supply module 3 v-14 v. the input voltage is 2.2-6 v, support 3.3v and ttl level. Single working current is 5A, peak current can reach 9A, low standby current (less than 10uA). Mounting hole diameter: 2mm. Package Inckuded: 1 * 5A dual motor drive.1 5A dual motor drive. Single working current is 5A, peak current can reach 9A, low standby current (less than 10uA)
