SunRobotics E-BIKE DC GEARED MOTOR 24V 300RPM 350W WITH CONTROLLER Motor Control Electronic Hobby Kit

SunRobotics E-BIKE DC GEARED MOTOR 24V 300RPM 350W WITH CONTROLLER Motor Control Electronic Hobby Kit

Price: Not Available
Currently Unavailable
Highlights
  • Power Source: Battery
  • RoHS Compliant
  • Material: Aluminium Alloy
  • Weight: 400
Description

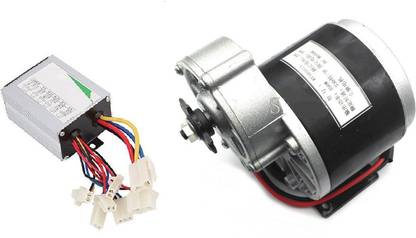

MY1016Z3 350W + Motor Controller, DIY Electric Bicycle Kit is the complete set of eBike Motor, Motor controller. This combo made with compatibility with each other so you do not need to put efforts to choose them individually for your project and it will save your money as well. This combo kit includes a 24V 350W DC Geared motor and 24V E-bike controller designed to run motors up to 350 Watts.E-bike Controller incorporates under Voltage protection 20.5 Volts. Maximum current 25 Amps. Current limiting feature prevents controller and motor damage due to over-current conditions. This popular reduction motor is simply the most commonly used motor for Scooters, Bikes and quad’s available on the market! It is normally found in the better quality quads and scooters on the market and is classed as a mid-range combination. They are quite powerful for their small size and extremely reliable. This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor’s power wires.
Read More
Specifications
In The Box
  • E-Bike Motor with contorller
General
brand
  • SunRobotics
Model Number
  • E-BIKE DC GEARED MOTOR 24V 300RPM 350W WITH CONTROLLER
Type
  • Motor Control
ROHS Complaint
  • Yes
Material
  • Aluminium Alloy
Additional Features
Other Features
  • Voltage: 24 volts DC, Output: 250 watt, Brake potential: Low potential brake, Dimensions: 7.5 X 5.3 X 2.1, RPM (after Reduction) : 300, Full load current: 13.4A, No load Current – 2.2A, Undervoltage protection: 20.5V, Current Limiting protection: 21.5A, Torque Constant – 8 N.m (80 kg-cm), Torque stall – 40 N.m (400 kg-cm), Sprocket: 9Tooth 1/8" bicycle chain
Dimensions
Width
  • 9 cm
Height
  • 15 cm
Weight
  • 400
Power Features
Battery Type
  • NA
No Of Batteries
  • 1
Battery Size
  • NA
Power Source
  • Battery
Other Power Features
  • NA
