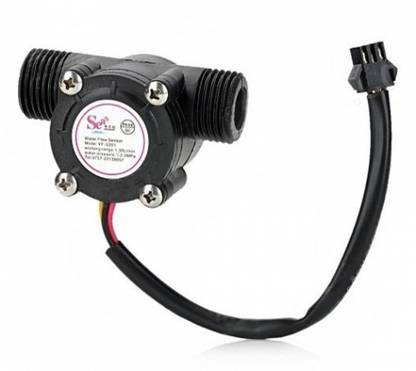

SunRobotics HALL EFFECT WATER FLOW METER / SENSOR(YF-S201)

SunRobotics HALL EFFECT WATER FLOW METER / SENSOR(YF-S201)  (Black)

Price: Not Available
Currently Unavailable
Highlights
  • Plastic Material
  • AA Battery
  • Non Rechargeable
  • Width x Height: 35 mm x 64 mm
Description
This sensor sits in line with your water line and contains a pinwheel sensor to measure how much liquid has moved through it. There's an integrated magnetic Hall Effect sensor that outputs an electrical pulse with every revolution. The Hall Effect sensor is sealed from the water pipe and allows the sensor to stay safe and dry. The sensor comes with three wires: red (5-24VDC power), black (ground) and yellow (Hall Effect pulse output). By counting the pulses from the output of the sensor, you can easily calculate water flow. Each pulse is approximately 2.25 milliliters. Note this isn't a precision sensor, and the pulse rate does vary a bit depending on the flow rate, fluid pressure and sensor orientation. It will need careful calibration if better than 10% precision is required. However, it’s great for basic measurement tasks! Pulse frequency (Hz) / 7.5 = flow rate in L/min.
Read More
Specifications
General
Sales Package
  • HALL EFFECT WATER FLOW METER / SENSOR(YF-S201) x 1
Skillset
  • Creativity & Imagination
Number Of Batteries
  • 0 Batteries
Minimum Age
  • 6 years
Material
  • Plastic
Battery Operated
  • No
Battery Type
  • AA
Rechargeable
  • No
Other Features
  • Working Voltage: 5 to 18V DC (min tested working voltage 4.5V), Max current draw: 15mA @ 5V, Working Temperature range: -25 to +80?, Working Humidity Range: 35%-80% RH, Maximum water pressure: 2.0 MPa, Output duty cycle: 50% +-10%, Output rise time: 0.04us, Output fall time: 0.18us, Flow rate pulse characteristics: Frequency (Hz) = 7.5 * Flow rate (L/min), Durability: minimum 300,000 cycles, 1/2" nominal pipe connections, 0.78" outer diameter, 1/2" of thread
Net Quantity
  • 1
Type
  • Science Project Kit
Dimensions
Width
  • 35 mm
Height
  • 64 mm
Depth
  • 35 mm
Weight
  • 67 g
