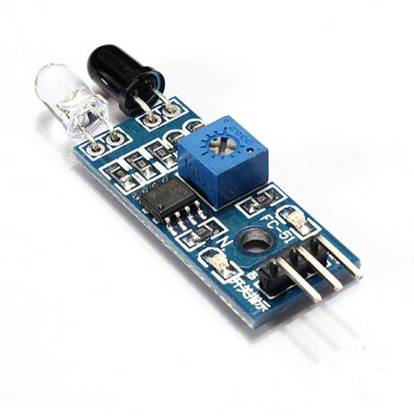

SunRobotics IR INFRARED OBSTACLE AVOIDANCE SENSOR MODULE (Blue)
Price: Not Available
Currently Unavailable
Highlights
Silicone Material
AA Battery
Non Rechargeable
Width x Height: 60 mm x 30 mm
Description
When the module detects an obstacle in front of the signal , the green indicator light on the board level , while low-level continuous output signal OUT port , the module detects the distance 2 ~ 30cm, detection angle 35 °, the distance can detect potential is adjusted clockwise adjustment potentiometer to detect the distance increases ; counterclockwise to adjust the potentiometer to reduce the detection distance
Active infrared sensors to detect the reflected, and thus the shape of the reflectivity of the target detection range is critical. The minimum detection distance which black , white maximum ; small objects from a small area , a large area from the Grand.
Read More
Specifications
General
Sales Package
IR INFRARED OBSTACLE AVOIDANCE SENSOR MODULE x 1
Skillset
Creativity & Imagination
Number Of Batteries
1 Batteries
Minimum Age
6 years
Material
Silicone
Battery Operated
No
Battery Type
AA
Rechargeable
No
Other Features
Connection : VCC-VCC; GND-GND; OUT-IO, Using the comparator LM393, stable, Can be used for 3-5V DC power supply modules. When the power is turned on, the red power indicator light, With the screw holes of 3mm , easy fixed installation, Board Size : 3.1CM * 1.5CM / 1.22 * 0.59", Each module shipments comparing the threshold voltage has been adjusted by the potentiometer is good , not exceptional, circumstances, do not arbitrarily adjust the potentiometer, Interface Description (3-wire):, 1. VCC: External 3.3V-5V voltage (can be directly connected to 5v MCU and 3.3v MCU), 2. GND: GND External, 3. OUT: Small board digital output interfaces (0 and 1)
A:to use these sensor u need to purchase Arduino uno board and we should have some knowledge about programs and connections hope u satisfied with the answer
Sachin Desai
Certified Buyer
2
1
Report Abuse
Q:How much voltage, it takes?
A:5-12 v
Anurag Chaurasia
Certified Buyer
1
1
Report Abuse
Q:which colour can it sense
A:this is not colour sensing device
Jayasayooj V P
Certified Buyer
1
0
Report Abuse
Q:How to connect this circut plz show it
A:I use bread board jumber wires to connect and remove connections it easily .
