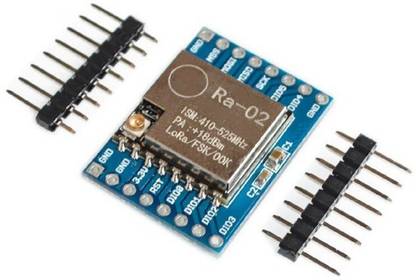

SunRobotics LoRa Module SX1278 433M 10KM Ra-02 Ai-Thinker Wireless Spread Spectrum Transmission Socket for Smart Home (Blue)
Price: Not Available
Currently Unavailable
Highlights
Fiber Glass Material
No batteries Battery
Non Rechargeable
Width x Height: 45 mm x 30 mm
Description
Ra-02 is a wireless transmission module based on SEMTECH SX1278 wireless transceiver. It adopts advanced LoRa spread spectrum technology, with a communication distance of 10,000 meters. It has strong anti-jamming ability and has the function of air-alarm clock-up Consumption. can be covering thousands of people in the neighborhood environment, especially suitable for reading counters, smart home, alarm equipment.The SX1278 RF module is mainly used for long-range spread spectrum communication. It can withstand Minimize power consumption.The SX1278 has a high sensitivity of -148 dBm with a power of + 20 dBm, a long transmission distance and high reliability.
Read More
Specifications
General
Sales Package
LORA Module sx1278
Skillset
Creativity & Imagination
Number Of Batteries
0 Batteries
Minimum Age
6 years
Material
Fiber Glass
Battery Operated
No
Battery Type
No batteries
Rechargeable
No
Other Features
LoRa ™ Spread Spectrum modulation technology, Constant RF power output at + 20dBm-100mW voltage change, High sensitivity: down to -148dBm, Half-duplex SPI communication, Programmable bit rates up to 300kbps, Supports FSK, GFSK, MSK, GMSK, LoRa ™ and OOK modulation modes, 127dB RSSI dynamic range, Automatic RF signal detection, CAD mode and very high speed AFC, Packet engine with CRC up to 256 bytes, Small footprint dual-row stamp-hole patch package
Net Quantity
1
Type
Science Project Kit
Dimensions
Width
45 mm
Height
30 mm
Depth
6 mm
Weight
13 g
