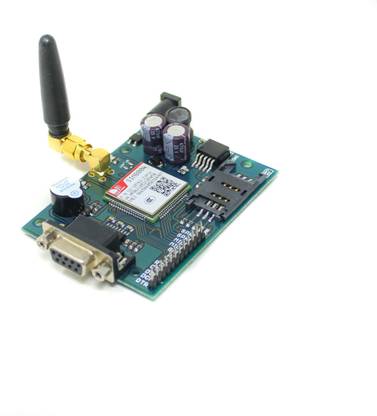

SunRobotics SIM800A GSM GPRS Module with RS232 Interface and SMA Antenna Electronic Components Electronic Hobby Kit

The SIM800A Quad-Band GSM/GPRS Module with RS232 Interface is a complete Quad-band GSM/GPRS solution in an LGA(Land grid array) type which can be embedded in the customer applications. SIM800A support Quad-band 850/900/1800/1900 MHz. It transmits Voice, SMS, and data information with low power consumption. A small size of 100 x 53 x 15 mm, it can fit into slim and compact demands of custom design. Featuring and Embedded AT, it allows total cost savings and fast time-to-market for customer applications. The SIM800A modem has a SIM800A GSM chip and RS232 interface while enables easy connection with the computer or laptop using the USB to the Serial connector or to the microcontroller using the RS232 to TTL converter. Once you connect the SIM800A modem using the USB to RS232 connector, you need to find the correct COM port from the Device Manager of the USB to Serial Adapter. After that one can open Putty or any other terminal software and open a connection to that COM port at 9600 baud rate, which is the default baud rate of this modem. Once a serial connection is open through the computer or your microcontroller you can start sending the AT commands.
