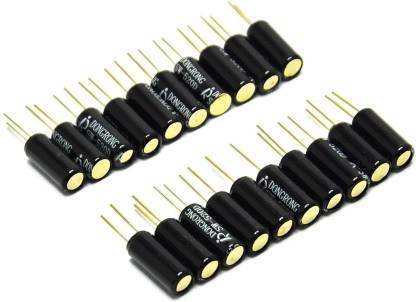

SunRobotics SW-520D Tilt switch Tilt Sensor Metal Ball Tilt Shaking Position Switches - Pack of 20 Electronic Components Electronic Hobby Kit

SunRobotics SW-520D Tilt switch Tilt Sensor Metal Ball Tilt Shaking Position Switches - Pack of 20 Electronic Components Electronic Hobby Kit

Price: Not Available
Currently Unavailable
Highlights
  • Power Source: DC
  • RoHS Compliant
  • Material: Epoxy
  • Weight: 0
Description
The tilt sensor is a component (switch) that can detect the orientation of an object (upright or not). It is equivalent to a pushbutton activated through its physical orientation. It contains a metallic ball inside that will commute the two pins of the device from CLOSED to OPEN if the sensor exceeds a certain angle and vice versa. Only when the tilt sensor is in its upright position, metallic balls inside the tilt sensor bridges the two contacts, completing the circuit. When the sensor is tilted beyond the sensitivity range, the contacts moves away, and thus opens the circuit.
Read More
Specifications
In The Box
  • SunRobotics SW-520D Tilt switch Tilt Sensor Metal Ball Tilt Shaking Position Switches - Pack of 20 x 1
General
brand
  • SunRobotics
Model Number
  • SW-520D Tilt switch Tilt Sensor Metal Ball Tilt Shaking Position Switches - Pack of 20
Type
  • Electronic Components
Minimum Age
  • 12
ROHS Complaint
  • Yes
Material
  • Epoxy
Additional Features
Other Features
  • Detect orientation or inclination, Small and inexpensive, Low-power and easy-to-use, If used properly, they will not wear out., Sensitivity range: > ±15 degrees, Lifetime: 50,000+ cycles (switches), Power supply: Up to 24V, switching less than 5mA
Dimensions
Width
  • 5 cm
Height
  • 1 cm
Weight
  • 0
Power Features
Battery Type
  • NA
No Of Batteries
  • 0
Battery Size
  • NA
Power Source
  • DC
Other Power Features
  • Power supply: Up to 24V, switching less than 5mA
