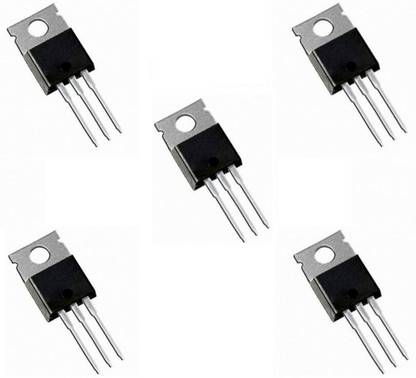

SunRobotics TIP41C NPN Power Transistor For Audio & Switching Applications 5pcs NPN Transistor (Number of Transistors 5)

Price: Not Available

Currently Unavailable

Description

TIP41C is a three layer NPN device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector emitter voltage VCE.

Specifications

In The Box

Number of Transistors	5
Sales Package	SunRobotics TIP41C NPN Power Transistor For Audio & Switching Applications 5pcs x 1

General

Brand	SunRobotics
Model Number	TIP41C NPN Power Transistor For Audio & Switching Applications 5pcs
Type	NPN
Package Type	TO-220
Power Consumption	65 W
Maximum Collector Current	6 A
Maximum Collector Emitter Voltage	100 V
Mount Type	Through Hole
DC Current Gain	45
Maximum Operating Frequency	3 MHz
Number of Pins	3
Net Quantity	5 Transistors

Additional Features

Other Features	Max Collector Current(IC): 6A or 6000mA., Max Collector-Emitter Voltage (VCE): 100V, Max Collector-Base Voltage (VCB): 100V., Max Emitter-Base Voltage (VEBO): 5V., For low distortion complementary designs
Key Features	Package Type: TO-220, Transistor Type: NPN.

Dimensions

Width	5 mm
Length	3 mm
Depth	2 mm
