SunRobotics ULINK2 ARM USB-JTAG PROGRAMMER & DEBUGGER Micro Controller Board Electronic Hobby Kit

Price: Not Available

Currently Unavailable

Highlights

Power Source: DC
RoHS Compliant
Material: Silicone
Weight: 450

Description

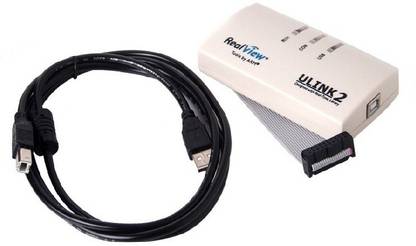

The Keil ULINK2 Debug Adapter connects your PC's USB port to your target system (via JTAG, SWD, or OCDS) and allows you to program and debug embedded programs on target hardware. Software used on PC will be Keil-MDK.

Specifications

In The Box

General

brand	SunRobotics
Model Number	ULINK2 ARM USB-JTAG PROGRAMMER & DEBUGGER
Type	Micro Controller Board
ROHS Complaint	Yes
Material	Silicone

Additional Features

Other Features

Supports various ARM7, ARM9, Cortex-M, 8051, and C166 devices, JTAG speed up to 10MHz, Serial Wire Debug (SWD) support for ARM Cortex-M based devices, Serial Wire Viewer (SWV) Data Trace for Cortex-M up to 1Mbit/s (UART mode), Real-Time Agent with memory R/W during execution, terminal emulation, and serial debug output, Seamless integration with the Keil µVision IDE & Debugger, Wide target voltage range: 2.7V - 5.5V, USB powered (no power supply required), Plug-and-Play installation using standard Windows USB drivers, Target Connectors: 20-pin (0.10") - ARM Standard JTAG Connector, On-chip Debugging (using on-chip JTAG, SWD, or SWV), Flash Memory Programming (using user-configurable Flash programming algorithms)., Using the ULINK2 adapter together with the Keil µVision IDE/Debugger, one can easily create, download, and test embedded applications on target hardware.

Dimensions

Width	6 cm
Height	4 cm
Weight	450

Power Features

Battery Type	NA
No Of Batteries	NA
Battery Size	NA
Power Source	DC
Other Power Features	NA
