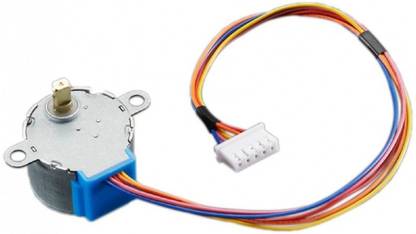

SunRobotics UNIPOLAR STEPPER MOTOR (28BYJ-48-5V) (Brown)

Price: Not Available

Currently Unavailable

Highlights

Steel Material
AA Battery
Non Rechargeable
Width x Height: 35 mm x 35 mm

Description

The 28BYJ-48 is a small, cheap, 5 volt geared stepping motors. These stepping motors are apparently widely used to control things like automated blinds, A/C units and are mass produced. Due to the gear reduction ratio of approximately 64:1 it offers decent torque for its size at speeds of about 15 rotations per minute (RPM).

Specifications

General

Sales Package	SunRobotics UNIPOLAR STEPPER MOTOR (28BYJ-48-5V) x 1
Skillset	Motor Skills
Number Of Batteries	0 Batteries
Minimum Age	6 years
Material	Steel
Battery Operated	Yes
Battery Type	AA
Rechargeable	No
Other Features	Rated voltage ?5VDC, Number of Phase 4, Speed Variation Ratio 1/64, Stride Angle 5.625° /64, Frequency 100Hz, DC resistance 50?±7%(25?), Idle Out-traction Frequency > 1000Hz, In-traction Torque >34.3mN.m(120Hz), Self-positioning Torque >34.3mN.m, Friction torque 600-1200 gf.cm, Pull in torque 300 gf.cm, Insulated resistance >10M?(500V), Insulated electricity power 600VAC/1mA/1s
Net Quantity	1
Type	Science Project Kit

Dimensions

Width	35 mm
Height	35 mm
Depth	35 mm
Weight	100 g
