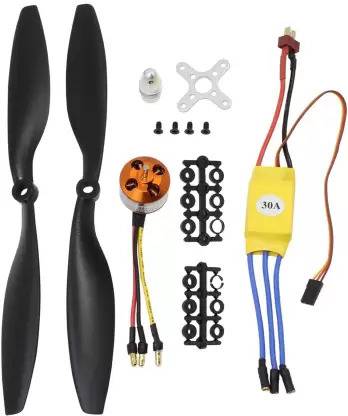

Vayuyaan 1000KV Brushless Motor A2212 with 30A Brushless ESC Set 2 Propeller RC Plane Kit Electronic Components Electronic Hobby Kit

A2212 1000kv Motor Specification: KV: 1000 Battery: 2-4 Li-poly or 5-12 NiCd / NiMH batteries: input voltage Max Speed?210,000rpm for 2 BLM poles, 70,000rpm for 6 BLM poles, 35,000rpm for 12 poles BLM. (BLM: brushless motor) 1045 Propeller Shaft Diameter: 6mm/0.24'' Adjustable with hole adapter (3mm, 3.2mm, 4mm, 5mm, 6mm, 6.35mm, 7.95mm) 30A Brushless ESC Specification: BEC: 2A/5V(linear mode). Constant Current: 30A. Max Current: 40A burst up to 10 seconds. Low-voltage Cutoff: Auto detect. Input: 2-4 LiPo or 5/12 NiMH. Package Included: 1 X A2212 1000kv Brushless Motor 1 X 30A Brushless ESC 2 X Propellers Attension: when first time to use this ESC and motor replacement or you are not skillful or professional to play RC Plane Quad copter Helicopter , Please follow these steps to set your throttle stroke calibration. Otherwise incorrect operating will cause ESC hot ,smoke or burn. How to set Throttle stroke calibration: 1.Connect the ESC with motor ,another end connect with receiver. 2.Turn on the remote controller and push the throttle to the highest point 3.Plug the ESC into batteries 4.There has double click sound (the highest point of the throttle confirm) 5.After get the click sound take the throttle stick to the lowest point 6.Confirm the three click sound that means OK Note: The three lines of the brushless ESC can be connected at will. If the steering is not correct, you can adjust any two of them.
