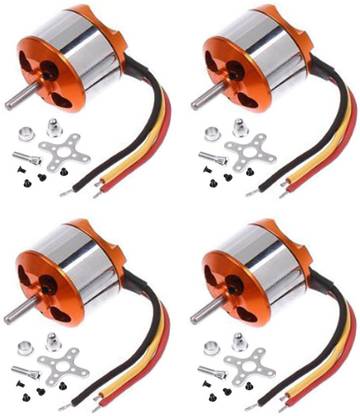

Super Debug 4 Pcs A2212 13T 1000KV Outrunner Brushless Motor for DJI F450 F550 MWC Multicopter (pack of 4) Electronic Components Electronic Hobby Kit

Super Debug 4 Pcs A2212 13T 1000KV Outrunner Brushless Motor for DJI F450 F550 MWC Multicopter (pack of 4) Electronic Components Electronic Hobby Kit

Price: Not Available
Currently Unavailable
Highlights
  • Power Source: DC
  • Material: Copper
  • Weight: 450
Description
This motor is designed purely for multi-rotor applications. The a2212 includes an integrated prop adaptor for use with many different style props featuring a 4mm shaft and adaptor sleeves for 5mm/6mm props. It also has an in-built aluminum mount for quick and easy installation on your quadcopter frame. This is not a modified airplane out runner. It was designed from the ground up specifically for multi-rotor applications. Specifications - stator dia (mm) - 22 stator length (mm) - 13 stator arms - 12 magnet poles - 14 rpm (kv) - 1400 idle current (a) - 0.68/8 max current (a) - 20 max power (w) - 220/3 biggest thrust (g/s) - 1265/4 rotor dia (mm) - 28 shaft dia (mm) - 3.17 motor length (mm) - 28 overall length (mm) - 42 package contents - 4x brushless motor 4x adapter for shaft 1x mount.
Read More
Specifications
In The Box
  • 4 X Brushless Motor
General
brand
  • Super Debug
Model Number
  • 4 Pcs A2212 13T 1000KV Outrunner Brushless Motor for DJI F450 F550 MWC Multicopter (pack of 4)
Type
  • Electronic Components
Minimum Age
  • 12
ROHS Complaint
  • No
Material
  • Copper
Dimensions
Width
  • 10 cm
Height
  • 10 cm
Weight
  • 450
Power Features
Battery Type
  • NA
No Of Batteries
  • NA
Battery Size
  • NA
Power Source
  • DC
Other Power Features
  • Has an in-built aluminum mount for quick and easy installation on your quadcopter frame, Stator dia (mm) - 22 stator length (mm), 4 pc 1000 kv brushless dc motor, With bullet connector, Built with high-end magnets, a high pole count and custom motor mount
