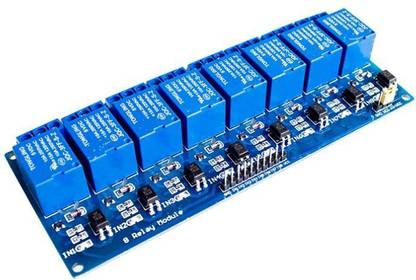

Super Debug 5v 8 channel Relay Module for arduino with optocoupler Micro Controller Board Electronic Hobby Kit

Price: Not Available

Currently Unavailable

Highlights

Power Source: DC
Material: Copper
Weight: 500

Description

5v 8-channel relay interface board and each one needs 15-20ma driver current, equipped with high-current relay, ac250v 10a, dc30v 10a, standard interface that can be controlled directly by microcontroller

Specifications

In The Box

1 X 8 Channel 5V Relay Board

General

Brand	Super Debug
Model Number	5v 8 channel Relay Module for arduino with optocoupler
Skillset	Analysis & Critical Thinking
Type	Micro Controller Board
Minimum Age	12
ROHS Complaint	No
Material	Copper
Age Group	16+ Years
Lights	No
Sound	No
Suitable For Gifting	NA

Dimensions

Width	9 cm
Height	6 cm
Weight	500

Power Features

Battery Type	NA
No Of Batteries	NA
Battery Size	NA
Power Source	DC
Other Power Features	Each one needs 15-20mA Driver Current.; Equiped with high-current relay : DC30V 10A AC250V 10A., Each relay has normally open and normally closed contact., The 8 channels are optically isolated, safe, reliable, anti-interference.; Can be selected by jumper relay and TTL or ground., With power indicator,8-way road has a status indicator.; With a relay coil to absorb the diode protection., The circuit board size 140mm X 55mm; Mounting hole size 133mm X 40mm (Size is approximate)
