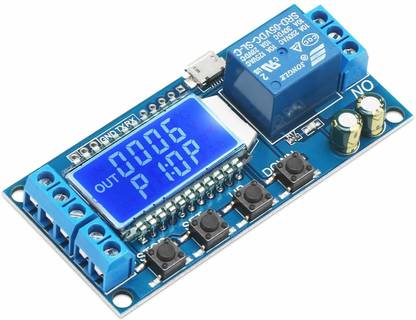

Super Debug Time Delay Relay DC 5V 12V 24V Delay Controller Board Delay-off Cycle Timer 0.01s-9999mins Trigger Delay Switching Relay Module with LCD Display Support Micro USB 5V Power Supply Electronic Components Electronic Hobby Kit

Product Parameters: Working voltage: DC 6V~30V, support micro USB 5.0 V power supply Working current: 50mA. Static Current: 15mA Max. Output load: DC 30V 5A and AC 220V 5A. Trigger signal source: High level trigger (3.0V~24.0V), low level trigger (0.0V ~0.2V), switching value control (Potential free contact) Service life: more than 100,000 times Working temperature: -40-85°C Additional Functions: a)Automatically hibernation function/ Low power function: In the running interface, long press STOP to open or close automatically sleep function. (L-P selects ON to start the hibernation function, and OFF turns off the hibernation function); b)Relay function selection: In the operation interface, shortly press STOP, the relay function is started or closed, 'ON' meets the conduction condition and the relay normally turns on, 'OFF' meets the conduction condition and the relay does not turn on; In the 'OFF' state, the system flashes 'OUT'. c)Parameters view: In the operation interface, short press SET to display the current parameter setting in the system, without affecting the system normal operation. d)Display content switching: In the P-5 P-6 mode, switch display content (runtime/cycle times) by pressing DOWN.
