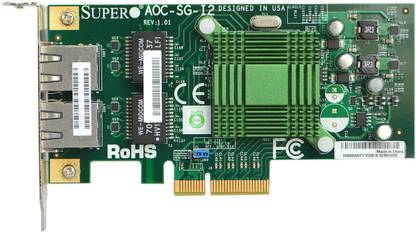

Supermicro AOC-SG-i2 Network Interface Card (Green)

Price: Not Available

Currently Unavailable

Warranty

1 Year Limited Warranty against manufacturing defects

Highlights

RJ45 Connector
Color: Green
1 Gbps Speed

Description

The AOC-SG-i2 provides the industry’s best priceperformance with its high-performing PCI Express 10/100/1000 Ethernet connection. This compact controller also improves flexibility and performance in virtualized multicore systems by lowering interrupt overhead and providing sorted multiple data queue paths.

Specifications

General

Other Features	• Intel 82575EB dual-port Gigabit Ethernet controller • PCI-E x4 • Low-profile standard form factor • Intel® I/OAT to improve CPU utilization • MSI-X support to minimize interrupt overhead and allow interrupt load balancing between CPUs/cores • Supports transmission and reception of Jumbo Frame packets up to 9.5KB • IEEE 802.3 auto-negotiation and compliant flow-control • VMDq for Virtualized Environments • Direct Cache Access (DCA) • Tx/Rx IP, TCP, and UDP checksum offloading (IPv4, IPV6) capabilities • Tx TCP segmentation offloading (IPv4, IPv6) • iSCSI boot • Supported cable length greater than 100 meters • Virtualization ready with VMWare support • Dimension (without end brackets) (HxL): 6.4cm (2.5”) x 13.2cm (5.2”)
Operating Temperature	0-55 degree C
Compatibility	Windows, Linux, FreeBSD, Netware
Model	AOC-SG-i2
In The Box	1 Gbps
Remote Boot	Yes
Color	Green
Brand	Supermicro

Port Connection

Connector Support	Dual
Connector Type	RJ45
Number of Connectors	2
Speed	1 Gbps

Transfer Rate

1 Gbps

Warranty

Service Type	1 Year Replacement/Refund Warrnty
Covered in Warranty	Nwetwork Adapter
Not Covered in Warranty	Accessories
Warranty Summary	1 Year Limited Warranty against manufacturing defects
