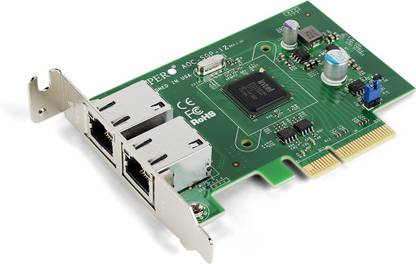

Supermicro AOC-SGP-i2 Network Interface Card (Green)

Price: Not Available

Currently Unavailable

Warranty

1 Year Limited Warranty against manufacturing defects

Highlights

RJ45 Connector
Color: Green
Led Indicators
1 Gbps Speed

Description

The AOC-SG-i2 provides the industry’s best priceperformance with its high-performing PCI Express 10/100/1000 Ethernet connection. This compact controller also improves flexibility and performance in virtualized multicore systems by lowering interrupt overhead and providing sorted multiple data queue paths.

Specifications

Warranty

Service Type	1 Year Replacement/Refund Warrnty
Covered in Warranty	Nwetwork Adapter
Not Covered in Warranty	Accessories
Warranty Summary	1 Year Limited Warranty against manufacturing defects
Domestic Warranty	1 Year

Compliance

Supported Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1as, IEEE 802.3az

Transfer Rate

1 Gbps

General

Brand	Supermicro
Model Name	AOC-SGP-i2
Other Features	• Intel 82575EB dual-port Gigabit Ethernet controller • PCI-E x4 • Low-profile standard form factor • Intel® I/OAT to improve CPU utilization • IEEE 802.3 auto-negotiation and compliant flow-control • VMDq for Virtualized Environments • Direct Cache Access (DCA) • Tx/Rx IP, TCP, and UDP checksum offloading (IPv4, IPV6) capabilities • Tx TCP segmentation offloading (IPv4, IPv6) • iSCSI boot • Virtualization ready with VMWare support • Dimension (without end brackets) (HxL): 6.4cm (2.5”) x 13.2cm (5.2”)
Operating Temperature	0-55 degree C
Compatibility	Windows, Linux, FreeBSD, Netware
Model	AOC-SGP-i2
In The Box	1 Gbps
Color	Green
LED Indicators	Yes
Remote Boot	Yes

Additional Features

Key Features

• PCI Express 2.0 (2.5Gb/s) • Intel® I/O Acceleration Technology (I/OAT) • Jumbo Frame support up to 9.5KB packets • VMDq for Virtualized Environments • Low-latency interrupts • Wake On LAN (WOL) • Pre-boot Execution Environment (PXE) • Direct Cache Access (DCA) • iSCSI Boot

Port Connection

Connector Support	Dual
Connector Type	RJ45
Number of Connectors	2
Speed	1 Gbps
