    Systems Tech HTM 590 Contact Type Digital Tachometer

    Systems Tech HTM 590 Contact Type Digital Tachometer

    Price: Not Available
    Currently Unavailable
    Warranty
    1 Year Warranty
    Description
    A contact-type tachometer is a device used to measure the speed of a rotating object, such as a motor or shaft. It typically consists of a dial, a needle, and an adjustable contact point. The needle is connected to the contact point, which is placed against the object being measured. As the object rotates, the contact point vibrates against the surface of the object, causing the needle to move. The resulting reading on the dial indicates the speed of the object.
    Read More
    Product Description
    Ergonomic Design

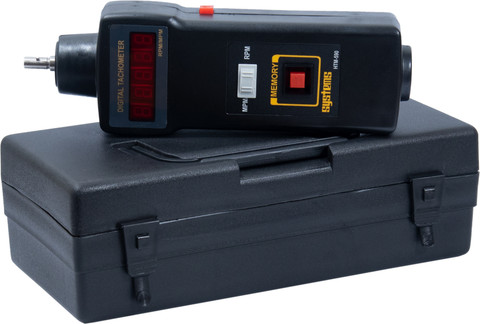

    Engineered for comfort and safety, this digital tachometer features an ergonomic design ideal for handheld use. The compact and robust construction ensures durability. It comes with a carrying case which is padded with foam and allows for convenient and secure transport. This design prioritises user comfort, making it easy to handle during extended use.

    Measurement Range

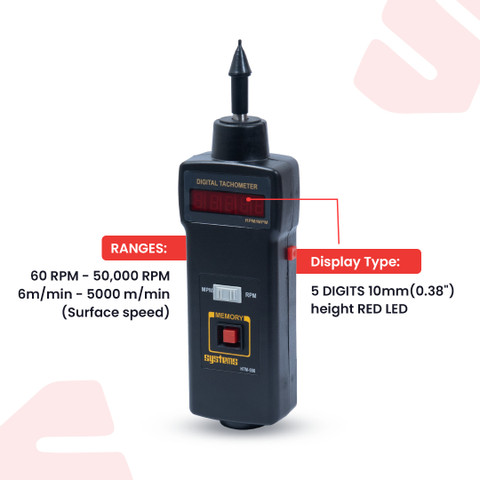

    Capable of measuring speeds from up to 60 to 50,000 RPM, this tachometer supports a broad range of applications. It also accurately measures surface speeds from 6 m/min to 5,000 m/min. This tachometer is equipped with an LED display that features up to five-digit readout, providing clear and precise readings.

    Display and Battery

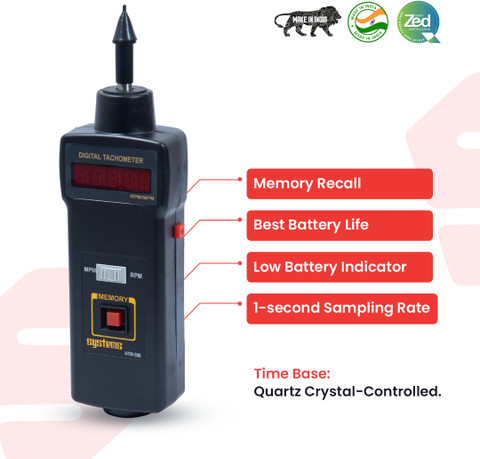

    This tachometer offers high visibility and ease of reading in various lighting conditions. The tachometer includes a battery with extended life and features an auto shut-off function to conserve power. A low battery indicator provides timely warnings, and memory recall allows users to retrieve previous measurements. The up to one-second sampling rate is quartz crystal controlled, ensuring stable and reliable performance.

    Accuracy and Sampling

    This tachometer ensures a high level of measurement accuracy with a tolerance of +/- 0.05 + 1 digit. Its sampling rate is set to up to one second, allowing for consistent and reliable data collection. This accuracy is crucial for precise measurements in various industrial and mechanical applications.

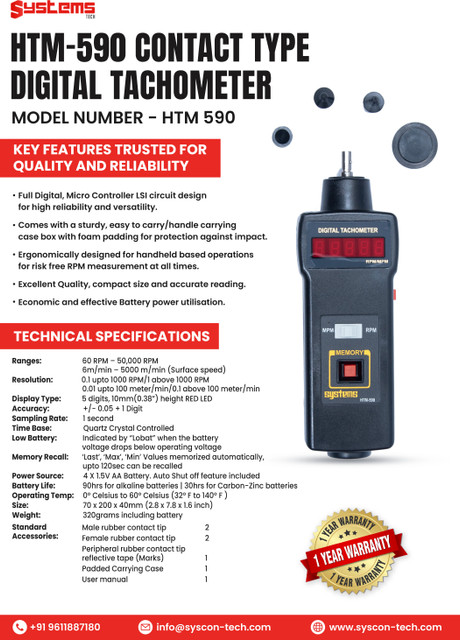

    Specifications
    General
    Model Number
    • HTM 590 Contact Type
    Type
    • Digital Tachometer
    Measuring Distance
    • 00 mm
    Measurement Range
    • 60-50,000 RPM, 6m/min – 5000 m/min (Surface speed)
    Measurement Accuracy
    • +/- 0.05 + 1 Digit
    Sampling Time
    • 1 sec
    Display
    • RED LED
    Power Source
    • 4 X 1.5V AA Battery, Auto Shut off feature included
    Net Quantity
    • 1
    Dimensions
    Length
    • 70 mm
    Width
    • 200 mm
    Height
    • 40 mm
    Weight
    • 320 g
    Warranty
    Warranty Summary
    • 1 Year Warranty
    Service Type
    • One-Year Warranty: To initiate a claim, please contact us at +91 9611887180 or email us at info@syscon-tech.com.
    Covered in Warranty
    • Digital Tachometer
