TECH AND TRADE Assembled Single Sided Printed Circuit Board (Pack...

more

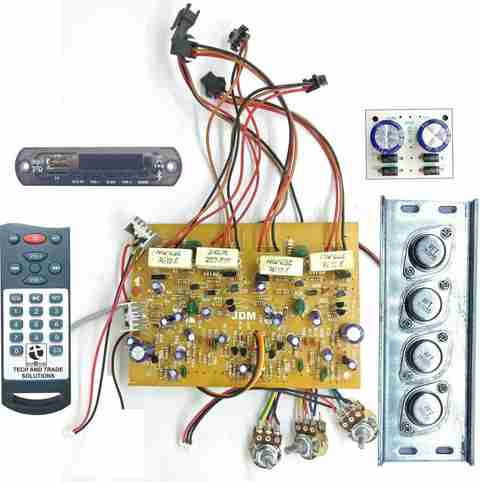

THIS IS AN AUDIO AMPLIFIER CIRCUIT BOARD BASED ON 2n3055 TRANSISTORS. THIS BOARD USES FOUR 2n3055 TRANSISTORS AND A 24 VOLTS DC POWER SUPPLY TO GENERATE AN OUTPUT OF ABOUT 300 WATTS. THIS BOARD HAS SAPARATE CONTROLS FOR BASS, TREBLE, VOLUME AND BALANCE. THESE CONTROLS ARE OPERATED BY FOUR POTENTIOMETERS, ALSO KNOWN AS TONES. THIS BOARD HAS STEREO OUTPUT. BOTH THE CHANNELS PROVIDE ABOUT 150 WATTS AT FOR 4 OHMS SPEAKERS. THIS BOARD IS VERY EASY TO INSTALL. THE ENTIRE PRODUCT COMPRISES OF FOUR INDIVIDUAL PARTS. FIRST PART IS THE MAIN BOARD. THE MAI BOARD CONTAINS ALL THE NECESSARY AMPLIFIER COMPONENTS. THE MAIN BOARD HAS THE CONTROLLING CONNECTIONS OF VOLUME, BASS, TREBLE BALANCE ETC. THIS BOARD WILL BE PROVIDED AS SHOWN IN THE IMAGE. ALL THE POTENTIOMETERS WILL BE SOLDERED IN, EXACTLY LIKE THE IMAGE SHOWS. SECOND PART IS THE 2n3055 TRANSISTORS. THIS SET OF FOUR TRANSISTORS IS MOUNTED ON A HEAT SINK. THE HEATSINK IS MADE UP OF HEAVY GUAGE ALUMINIUM FOR EASY AND SMOOTH HEAT DISPERSION. THE TRANSISTORS ARE INSTALLED ON A SILICON SAPARATOE WHICH PREVENTS THE TRANSISTORS FROM SHORTING AND OTHER VOLTAGE DAMAGES. THIRD PART IS THE 24V DC DUAL SUPPLY BRIDGE. THIS CIRCUIT TAKES UP THE INPUT 24V FROM 24-0-24V TRANSFORMER AND CONVERTS IT TO +24V DC AND - 24V DC, AS NEEDED TO RUN THE BOARD. THIS SUPPLY BOARD CAN PROVIDE THE VOLTAGE OUTPUT OF ABOUT 5 TO 7 AMPERES. FOURTH PART IS A BLUETOOTH MODULE CARD THAT COMES WITH A REMOTE CONTROL. THIS MODULE CARD CAN BE USED TO PROVIDE THE AUDIO SIGNALS TO THE BOARD. THIS BLUETOOTH MODULE HAS BLUETOOTH, AUX, USB CONNECTIVITY AND HAS FM PLAYER ALSO.
