TECH AND TRADE Assembled Single Sided Printed Circuit Board
TECH AND TRADE Assembled Single Sided Printed Circuit Board (Pack...more
Buy at ₹930
Apply offers for maximum savings
Apply offers for maximum savings!
Product highlights
Number of PCBs
2
Sales Package
1 MAIN BOARD, 1 POWER SUPPLY AND MANUALS
Brand
TECH AND TRADE
Model Number
TNTS 3055 TRANSISTORS BASED BASS TREBLE AUDIO AMPLIFIER CIRCUIT BOARD WITH 12V TO 24V POWER SUPPLY CONVERTOR CIRCUIT
Type
Assembled Single Sided
Used For
MUSIC SYSTEMS
Size
5*6
Material
Copper
All details
Features, description and more
Specifications
Description
Warranty
Manufacturer info
Show More
In the Box
Number of PCBs
2
Sales Package
1 MAIN BOARD, 1 POWER SUPPLY AND MANUALS
General
Brand
TECH AND TRADE
Model Number
TNTS 3055 TRANSISTORS BASED BASS TREBLE AUDIO AMPLIFIER CIRCUIT BOARD WITH 12V TO 24V POWER SUPPLY CONVERTOR CIRCUIT
Type
Assembled Single Sided
Used For
MUSIC SYSTEMS
Size
5*6
Material
Copper
Coating
FILM COATING
Perforated
No
Flexible
No
Mount Type
Surface Mounted
Power Requirement
12V DC
Net Quantity
2 PCBS
Additional Features
Other Features
EASY TO CONNECT
Key Features
STEREO SOUND OUTPUT.
Dimensions
Thickness
4 cm
Width
9 cm
Weight
0.45 kg
Length
18 cm
Other Dimensions
6
See more

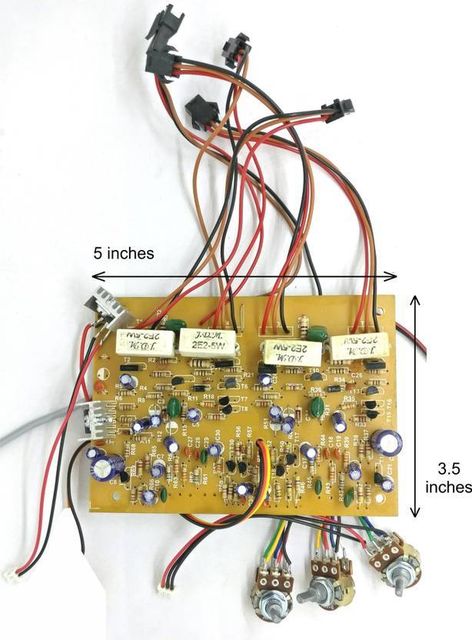

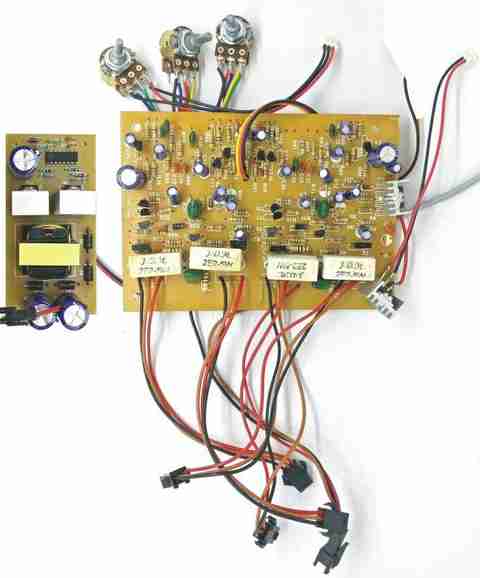

THIS IS AN AUDIO AMPLIFIER CIRCUIT BOARD BASED ON 2n3055 TRANSISTORS. THIS BOARD USES FOUR 2n3055 TRANSISTORS AND A 24 VOLTS DC POWER SUPPLY TO GENERATE AN OUTPUT OF ABOUT 300 WATTS. THIS BOARD HAS SAPARATE CONTROLS FOR BASS, TREBLE, VOLUME AND BALANCE. THESE CONTROLS ARE OPERATED BY FOUR POTENTIOMETERS, ALSO KNOWN AS TONES. THIS BOARD HAS STEREO OUTPUT. BOTH THE CHANNELS PROVIDE ABOUT 150 WATTS AT FOR 4 OHMS SPEAKERS. THIS BOARD IS VERY EASY TO INSTALL. FIRST PART IS THE MAIN BOARD. THE MAIN BOARD CONTAINS ALL THE NECESSARY AMPLIFIER COMPONENTS. THE MAIN BOARD HAS THE CONTROLLING CONNECTIONS OF VOLUME, BASS, TREBLE BALANCE ETC. THIS BOARD WILL BE PROVIDED AS SHOWN IN THE IMAGE. ALL THE POTENTIOMETERS WILL BE SOLDERED IN, EXACTLY LIKE THE IMAGE SHOWS. THE POWER SUPPLY. THE POWER SUPPLY TAKES UP A VOLTAGE OF 12 VOLTS AND THEN CONVERTS IT TO 24 VOLTS. THIS SUPPLY BOARD CAN PROVIDE THE VOLTAGE OUTPUT OF ABOUT 5 TO 7 AMPERES.
See more
Warranty Summary
ONLY MANUFACTURING DEFECTS COVERED
Covered in Warranty
ANY AND ALL MANUFACTURING DEFECTS
Not Covered in Warranty
BURNT PARTS OR PHYSICAL DAMAGE
Warranty Service Type
CUSTOMER NEEDS TO CALL CUSTOMER CARE
Generic Name
printed Circuit Board
Country of Origin
India
Name and address of the Manufacturer
TECH AND TRADE SOLUTIONS, B-2, KAMAL VIHAR, KARAWAL NAGAR, DELHI 110090.
