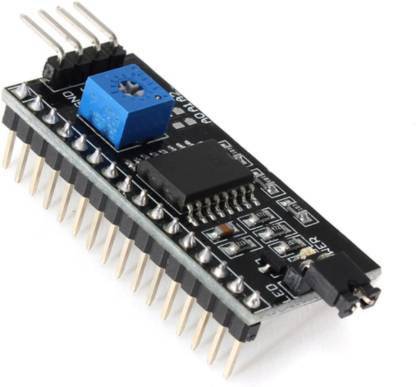

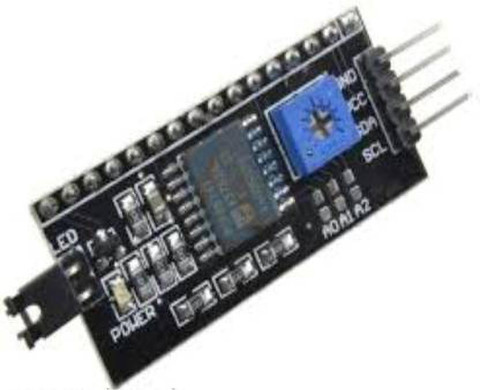

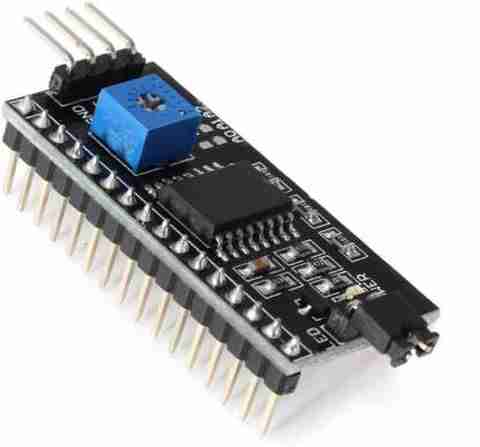

Techleads IIC/I2C SERIAL INTERFACE ADAPTER MODULE Electronic Components Electronic Hobby Kit

Techleads IIC/I2C SERIAL INTERFACE ADAPTER MODULE Electronic Components Electronic Hobby Kit

Price: Not Available
Currently Unavailable
Highlights
  • Power Source: DC
  • Material: Copper
  • Weight: 100
Description
This is a RoHS compliant I2C Serial LCD Daughter board that can be connected to a standard 16×2 or 20×4 Character Display Module that supports 4-bit mode. All Character Modules sold on our site support 4-bit mode, and nearly all commercially available 16×2 and 20×4 line character modules support it too.This board has a PCF8574 I2C chip that converts I2C serial data to parallel data for the LCD display. There are many examples on the internet for using this board with Arduino. Do a search for “Arduino LCD PCF8574“. The I2C address is 0x3F by default, but this can be changed via 3 solder jumpers provided on the board. This allows up to 3 LCD displays to be controlled via a single I2C bus (giving each one it’s own address)
Read More
Specifications
In The Box
  • 1
General
brand
  • Techleads
Model Number
  • IIC/I2C SERIAL INTERFACE ADAPTER MODULE
Type
  • Electronic Components
ROHS Complaint
  • No
Material
  • Copper
Dimensions
Width
  • 5 cm
Height
  • 1.9 cm
Weight
  • 100
Power Features
Battery Type
  • Na
No Of Batteries
  • Na
Battery Size
  • Na
Power Source
  • DC
Other Power Features
  • Na
