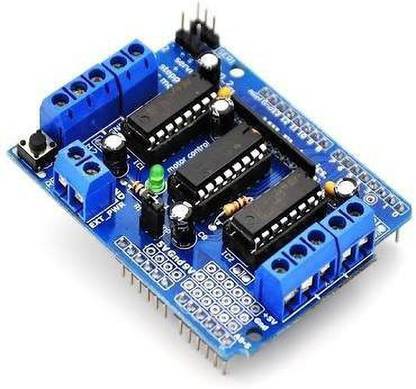

Techleads L293D Motor Driver Shield Expansion Board For Arduino Mega UNO Due Educational Electronic Hobby Kit

Techleads L293D Motor Driver Shield Expansion Board For Arduino Mega UNO Due Educational Electronic Hobby Kit

Price: Not Available
Currently Unavailable
Highlights
  • Power Source: DC
  • Material: Carbon Fiber
  • Weight: 90
Description
It has 2 connections for 5v hobby servos connected to the arduino's high-resolution dedicated timer. Its 4 h-bridges and l293d chipset provide 0. 6a per bridge. It comes with thermal shutdown protection and internal kickback protection diodes. It can run motors on 4. 5vdc to 25vdc. It provides up to 4 bi-directional dc motors with individual 8-bit speed selection with single coil, double coil or interleaved stepping. The pull-down resistors keep motors disabled during power-up. It has big terminal block connectors to easily hook up wires and power arduino reset button brought up top 2-pin terminal block and jumper to connect external power, for separate logic/motor supplies. This is tested and compatible with arduino mega 1280 and 2560, diecimila, duemilanove, and uno.
Read More
Specifications
In The Box
  • 1 PCS L293D Driver
General
brand
  • Techleads
Model Number
  • L293D Motor Driver Shield Expansion Board For Arduino Mega UNO Due
Type
  • Educational
ROHS Complaint
  • No
Material
  • Carbon Fiber
Dimensions
Width
  • 6 cm
Height
  • 4 cm
Weight
  • 90
Power Features
Battery Type
  • NA
No Of Batteries
  • NA
Battery Size
  • NA
Power Source
  • DC
Other Power Features
  • NA
