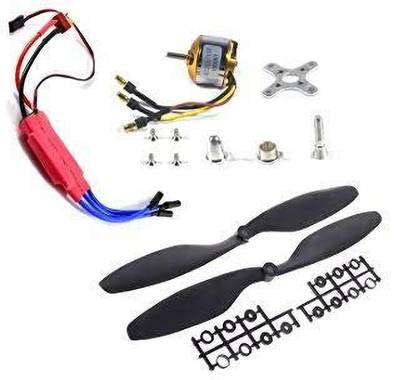

Techleads RC Combo Kit 30 A Esc Simonk and 1045 Propeller Set and Brushless Motor Educational Electronic Hobby Kit
Get notified when this item comes back in stock.

Techleads RC Combo Kit 30 A Esc Simonk and 1045 Propeller Set and Brushless Motor Educational Electronic Hobby Kit

Share

Techleads RC Combo Kit 30 A Esc Simonk and 1045 Propeller Set and Brushless Motor Educational Electronic Hobby Kit

Be the first to Review this product
₹889
1,999
55% off
Sold Out
This item is currently out of stock
Highlights
  • Power Source: Battery
  • Material: Plastic
  • Weight: 180
Description
MODEL NO : A2212 1000KV BRUSHLESS MOTOR + 30A ESC WEIGHT & DIMENSIONS : Motor size and weight : 27.5 x 27mm / 1.1 * 1.1in & 48g ESC Size & weight : 45 x 24 x 11mm / 1.8 * 0.9 * 0.4in & 25g Total item weight : 87g MATERIAL & COLOUR : NA & Multicolor TECHNICAL SPECIFICATIONS: Brushless Dc Motor: KV (rpm/volt): 1000 Thrust: 900/4 Efficiency : 80% efficiency current: 4-10A (>75%) Current capacity : 12A/60s Load current @10v: 0.5A Working voltage: 7-12V Brushless ESC: Output: Continuous 30A, burst 40A up to 10 Secs. Input voltage: 2-4 cells lithium battery or 5-12 cells NiCd/NIMh battery BEC: 2A / 5V (Linear mode). Max speed: 210,000rpm for 2 poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM. (BLM: Brushless Motor)
Read More
Specifications
In The Box
  • 9 UNITS
General
brand
  • Techleads
Model Number
  • RC Combo Kit 30 A Esc Simonk and 1045 Propeller Set and Brushless Motor
Type
  • Educational
ROHS Complaint
  • No
Material
  • Plastic
Dimensions
Width
  • 9 cm
Height
  • 7 cm
Other Dimensions
  • NA
Weight
  • 180
Power Features
Battery Type
  • Dc
No Of Batteries
  • NA
Battery Size
  • NA
Power Source
  • Battery
Other Power Features
  • NA
Warranty
Warranty Summary
  • Na
Service Type
  • Na
Covered in Warranty
  • Na
Not Covered in Warranty
  • Na
