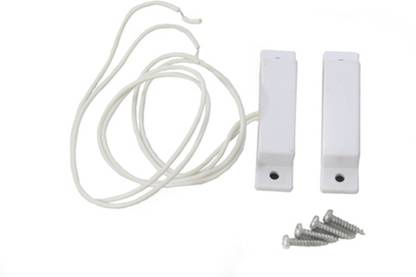

Technical hut Magnetic Door Switch Sensor Security Circuit and Motion Detector Electronic Hobby Kit

A Magnetic Contact is an electrically controlled switch used for switching a power circuit, similar to a relay. Magnetic contacts give exact position of the door (open/close). Specifications: Dimensions: 27 * 14 * 10 mm. In this the electrical circuit is ON when magnet is away from sensor(door in open position). Used in kitchen cabinet etc. to make led light ON when cabinet door opens. The sensor alone can be connected only in low power ( less than 12 W) dc circuits. it can not directly connect to 230 v ac circuit. For that you will have to use a relay along with this sensor. we have the relay fitted version also for 230v ac.
