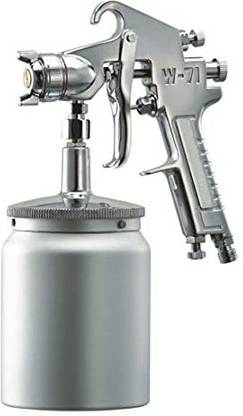

techno tronics Feed Suction Paint Spray Gun 1.5mm High Pressure Reservoir Capacity: 600 L HVLP Sprayer  (Silver)

professional spray gun high low pressure with low air pressure saves paint and protects the environment, good design of construction. Nozzle size: 1.4 high atomization with low air pressure saves paint and protects the environment, good design of construction. Better than 75% transfer efficiency with less than 10% psi output pressure, -------consumption cfm :12.3, air consumption: 6.0-11 cfm(170-300 Ltr/Min); feed type : gravity -----standard nozzle: 1.4mm, air inlet: g1/4" -----capacity of cup: 600ml, air pressure: 3-4 bar(45-60PSI). how to use it;'- Connect the spray gun to the air compressor and set the air pressure as per the gun's instructions. Fill the gun's reservoir with paint. Turn on the air compressor and spray a light coat of paint onto a sheet of cardboard or scrap wood. Paint using a sweeping motion of the gun and do not put on too thick of a coat--it is always easier to add another thin coat of paint than it is to remove a coat. If the paint clots when coming out or if paint does not produce an even coat, then additional thinning may be required. If a line of paint appears at the top and/or bottom of the test swath, then your paint may be too thin. Add fresh paint to thicken. Continue testing on cardboard or wood until you achieve a smooth and consistent coat. When painting, always use a smooth sweeping motion. Several light coats are better than one coat that is too thick.
