Techtest Lan Tester Multi-Functional Wire Tracker Fwt11 Network Cable Tester Rj45 Network Interface Card

Techtest Lan Tester Multi-Functional Wire Tracker Fwt11 Network Cable Tester Rj45 Network Interface Card  (Blue)

Price: Not Available
Currently Unavailable
Warranty
Na
Highlights
  • Wire Tracing: Trace RJ11, RJ45, Connector
  • Color: Blue
  • Wireless
Description
BRIEF DESCRIPTION This Instrument Is a Multi-Functional Handheld Cable Testing Tool, It Has Wide Application with Reinforced Cable Types and Multiple Functions. It Is a Necessary Testing Tool for Telecommunication Engineering, Wiring Engineering and Network. Maintenance Person. Main Functions Wire tracing Trace RJ11, RJ45, cables or other metal wire (via adapter). Easy and fast to locate the breakpoint without opening the wire's cover. Network cable Collation: Judge short-circuit, breaking circuit, open circuit and Crossing. Test line level, positive and negative polarity. Status of telephone line checking: Test the working status of telephone line (idle, Ringing, and off-hook) and judge TIP and RING line. Check wire continuity General technical parameters Temperature Operating temperature: 0 C~40C, maximal 80% relative humidity (non-condensing) Storage temperature: -10~50"C, maximal 80% relative humidity (non-condensing.) Altitude: <2000m (meter) Anti-explosion rating: IP 40, Distance of emitting signal: 300m or so, Safety class: IEC61010-1 600V CAT III, pollution class lI. AccessoriesWhat's In The Box :- 1 x FWT11 Emitter 1 x FWT11 Receiver, 1 x RJ11 with Clip Adapter Cable, 1 x RJ45 Adapter Cable, 1 x User Manual,
Read More
Specifications
General
Other Features
  • 1 :- ( SPECIFICATION ) :- Operating temperature: 0°C ~ 40°C, maximal 80% relative humidity (non-condensing), 2 :- ( STORAGE TEMPERATURE ) :- -10~50°C, maximal 80% relative humidity (non-condensing), 3 :- ( ALTITUDE ) :- <2000m( meter), 4 :- ( ANTI-EXPLOSION RATING ) :- IP 40, 5 :- ( DISTANCE OF EMITTING SIGNAL ) :- about 300m., 6 :- ( EMITTER & RECEIVER BATTERY ) :- 6F22/9V, 7 :- ( MAIN FUNCTIONS ) :- Work prefect when RJ11 RJ45 cable is on power. Wire Tracing: Trace RJ11, RJ45, cables or other metal wire (via adapter).
Operating Humidity
  • Maximal 80% Relative Humidity (Non-Condensing)
Operating Temperature
  • 0°C ~ 40°C degree C
Compatibility
  • Wire Tracker
Model
  • Lan Tester Multi-Functional Wire Tracker Fwt11 Network Cable Tester Rj45
Series
  • Lan Tester Multi-Functional Wire Tracker Fwt11 Network Cable Tester Rj45

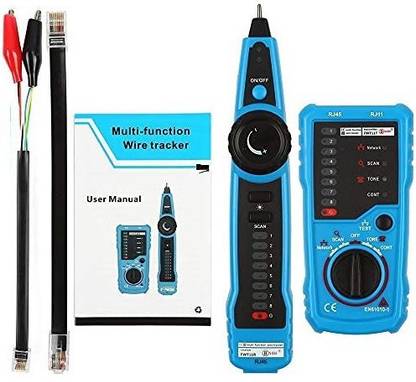

In The Box
  • ?1 x FWT11 Emitter - 1 x FWT11 Receiver - 1 x Clip adapter cable - 1 x RJ45 adapter cable - 1 x English User Manual
LED Indicators
  • No
Remote Boot
  • No
Boot Rom Socket
  • No
Color
  • Blue
Brand
  • Techtest
Compliance
Supported Standards
  • MAIN FUNCTIONS :- Work prefect when RJ11 RJ45 cable is on power. Wire Tracing: Trace RJ11, RJ45, cables or other metal wire (via adapter).
Type
Wireless
  • Yes
Port Connection
Connector Support
  • RJ11, RJ45,
Connector Type
  • Wire Tracing: Trace RJ11, RJ45,
Number of Connectors
  • 2
Warranty
Service Type
  • Na
Covered in Warranty
  • Na
Not Covered in Warranty
  • Na
Warranty Summary
  • Na
