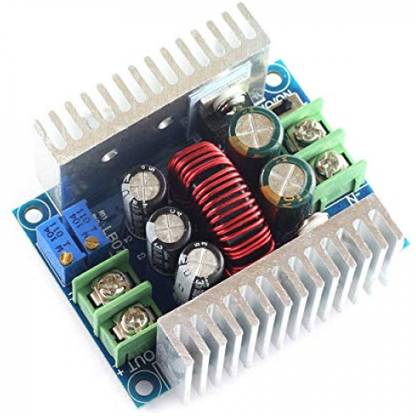

Techtonics 300W 20A DC-DC Adjustable Step Down Buck Converter Module Constant Current Voltage Regulator Power Supply Power Supply Electronic Hobby Kit

Price: Not Available

Currently Unavailable

Highlights

Power Source: DC
Material: Copper
Weight: 0.25

Description

Input Voltage: 6V to 40V DC(10V to 40V is suggested) Output Voltage: 1.2V to 36V DC Output Current: 20A(max.), 15A(suggested) Efficiency: 95%(24V to 12V, 20A) Output Ripple: ?50mV Wiring Method: Terminal Short Circuit Protection: Self-recovery (cannot short circuit for long time) Size: 60 x 53 x 27mm / 2.36 x 2.08 x 1.06"

Specifications

In The Box

300W 20A DC-DC

General

Brand	Techtonics
Model Number	300W 20A DC-DC Adjustable Step Down Buck Converter Module Constant Current Voltage Regulator Power Supply
Skillset	Motor Skills
Type	Power Supply
ROHS Complaint	No
Material	Copper
Age Group	14-16 Years
Key Features	With a wide input voltage range from 6V to 40V, the step-down converter can accurately adjust output voltage and current. The efficiency can be up to 96%, measured at 20A, converting 24V to 12V. It is designed with 75V/80A large current dual MOS tube. Input and output use high frequency low resistance electrolytic capacitor, low ripple, stable output. Wiring is convenient with these large current 30A screw terminals. The buck module has 2 heat sink that could enhance heat dissipation. When there is a big difference between input and output voltage, please decrease power and current.

Dimensions

Width	5.3 cm
Height	2.7 cm
Weight	0.25

Power Features

Battery Type	NA
No Of Batteries	NA
Battery Size	NA
Power Source	DC
Power Consumption	300
Other Power Features	NA
