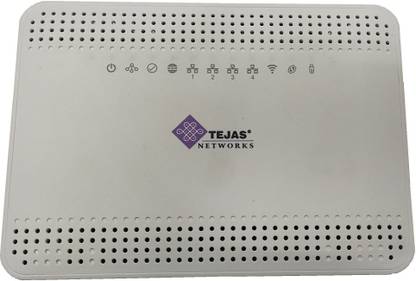

Tejas Networks TJ2100N 12V GPON ONT | Single Band WiFi ONU | 100% Make in India Wireless Router 2.4 GHz 90 Mbps Wifi Speed Single Band Internal Antenna Both (Ethernet and ADSL)  (White)

GPON Interface Specifications: SC/APC connector Transmission: ITU-T G.984 | Optical module: Class B+ Optical transmit power +0.5 to +5dBm and Receive sensitivity of –27 dBm. Upstream and Downstream FEC Ethernet: Meets 802.3 specifications 2x10/100/1000Mbps RJ-45 connector POTS: 1*FXS ports with RJ11 connectors. USB : 1 * USB 2.0 Voice Features: Signaling: SIP (RFC 3261) Locale selection based on country profile Codecs: G.711 a-law, G.711 u-law, G.729 Media and signaling are separated Fax: Transparent FAX, T.38 fax relay DTMF: Inband, RFC2833, SIP Info Voice Activity Detection: Supported SIP Transport : UDP & TCP Wireless Features: Standards: 802.11 a/b/g/n/ac with channel bandwidth: 20/40/80MHz (ac) Frequency of operation: 2.4GHz Multiple SSID per radio: Supported AP isolation: Supported Max clients: 32 per radio Mac restrict mode: Supported Mac filter based probe response: Supported No of TX/RX chains: 2 for 2.4GHz; beam forming (802.11 ac); band steering | WMM support: Yes Preamble: Configurable between short/long Beacon interval: Configurable Management: OMCI, TR69 Power saving: As per ITU-T 984.3 (01/2014) of ONU power management aspects GPON Features: Data rates of 2488Mbps downstream and 1244Mbps upstream. | 32 TCONT and 128 GEM port IDs | Ranging and activation process support | HW Dying gasp Wavelength: 1490 nm/1310 nm Distance: 20km between closest and farthest ONT from OLT, as per GPON standards. Layer 2 capabilities Non-Blocking wire speed reception and transmission | Supports source and destination MAC address filtering Layer 3/4 hardware NAT/NAPT: Support 4K/8K/16K/32K flow based connections | Port/VLAN bridging | IPV4/IPV6 flow routing for policy rate |IPOE/DHCP/PPPoE/PPTP/L2TP WAN hardware forward
