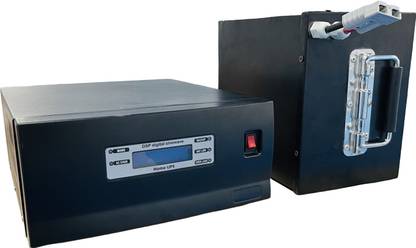

Terranova T-E1150 Terranova Lithium Inverter 1000VA with Lithium Battery Pure Sine Wave Inverter

Price: Not Available

Currently Unavailable

Warranty

2 YEARS ON THE INVERTER AND 5 YEARS ON THE BATTERY PACK.

Highlights

Battery Capacity: 12.8V 90Ah

Description

Premium Quality Product 1.2KW Lithium Battery Pack Sleek Design Easy installation Reduced Size Zero maintenance Long Life Efficient Energy Use Pure Copper Transformer

Specifications

Output Features

Efficiency	80 %
Output Voltage	220V
Output Frequency	50Hz
Overload	110%
AC Output Types	4 Way Connector
Output Power	800 W
Change Over Time	10 ms
VA Rating	500 VA

Environmental Features

Storage Temperature	298-308 Kelvin
Operating Temperature	273.15-328.15 Kelvin

Warranty

Warranty Summary	2 YEARS ON THE INVERTER AND 5 YEARS ON THE BATTERY PACK.
Service Type	IN CASE OF DAMAGE/REPAIR CUSTOMER CAN CONTACT THE COMPANY AND THEN COMPANY PROCESS THE CUSTOMER REQUEST AND ASSIGN THE SERVICE ENGINEER
Covered in Warranty	REPAIR OR REPLACE FAULTY PRODUCT DURING THE WARRANTY PERIOD, REPAIR OR REPLACE THE MANUFACTURING DEFECTS.
Not Covered in Warranty	CONTINUOUS USE OF PRODUCT MORE THAN THE AGREED OPERATION RANGES LIKE STATE OF CHARGE (SOC), VOLTAGE, CURRENT, TEMPERATURE, NUMBER OF CYCLES . ANY PHYSICAL DAMAGE TO THE PRODUCT AFTER INSTALLATION. IMPROPER TRANSPORTATION , STORAGE, WIRING OR HANDLING. MODIFICATION, ALTERATION, DIS ASSEMBLY, REPAIR OR REPLACEMENT BY UNAUTHORIZED PERSONNEL. EXTERNAL INFLUENCES INCLUDING UNUSUAL PHYSICAL OR ELECTRICAL STRESS. USE OF AN INCOMPATIBLE CHARGER. DAMAGE OCCURRED DUE TO FORCE MAJEURE / NATURAL CALAMITIES.
Domestic Warranty	2 Year

Input Features

Input Voltage	12VDC
Input Frequency	50Hz
Low Cut Input Voltage	110VAC(Inverter Mode)/180VAC(UPS Mode)
Low Cut Recovery Input Voltage	150VAC(Inverter Mode) 210VAC(UPS Mode)
High Cut Input Voltage	280VAC(Inverter Mode) 260VAC(UPS Mode)
High Cut Recovery Input Voltage	260VAC(Inverter Mode) 240VAC(UPS Mode)
Other Input Features	12.8VDC Battery Input

Battery Features

Battery Type	LiFePo4
Recharge Time	10hrs
Number of Batteries	1
Battery Boost Voltage	14.4V
Battery Voltage	12.8V
Battery Capacity	12.8V 90Ah
Battery Charging Current	10A
Replacement Battery	Yes
Replacement Battery Type	LiFePo4
Compatible Battery Types	LiFePo4
Compatible Battery Make	Terranova Green Energy

In The Box

Sales Package

INVERTER, WARRANTY CARD, USER MANUAL

General

Brand	Terranova
Model Number	T-E1150
Battery Included	Yes
Back Up Time	5 hrs
Load Options	4 CEILING FANS, 4 LED BULBS, 2 (6AMS) SOCKETS
Type	Pure Sine Wave Inverter
Model Name	Terranova Lithium Inverter 1000VA with Lithium Battery
Mode Type	Automatic Inverter
Material	Power Coated Mild Steel
Fixture Type	Floor Mounting
Technology Used	H-bridge Inverter MOSFET Switching, S-BR Technology Inside
Solar Power Compatible	No
Switch Type	Inverter On /Off, UPS and Inverter Mode, Selection Switchers, AC Grid Charger On/Off

Dimensions

Width	30 cm
Height	12 cm
Depth	31 cm
Weight	21 kg

Additional Features

Corrosion Resistant	Yes
Key Features	Easy Operation, Pure Sine Wave, Lithium Inverter, Wide/Narrow Mode Selection, Floor Mounted

Convenience Features

Emergency Power Off	Yes
Display Type	LED Display
Display Indicator Functions	Inverter ON, Mains ON, Low Battery , Over Load, Battery Charging
Audible Indicator Functions	Buzzer
USB Charging Port	No
Protection Against	Short Circuit Protection, Over Voltage Protection, Lower Voltage Protection, Over Temperature Protection, Over Load Protection
Cooling System	Forced Cooling (DC Fan)
Other Convenience Features	PURE SINE WAVE, MAINTANECE FREE, COPPER TRANSFORMER, SLEEK DESIGN, EASY OPERATION
