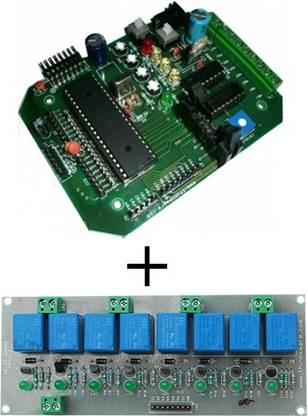

Thinnk Ware AVR DEVELOPMENT BOARD + RELAY MODULE Micro Controller Board Electronic Hobby Kit

Best Suited for the AVR Based Robotics Project FEATURES: High Power AVR ATMEGA 16 Development board. Can be used with ATMEGA 16 microcontroller. On Board Voltage Regulator with filters and operating voltage from 6V - 12V. 16MHz crystal oscillator for maximum speed. Interfaced LEDs. RED LED as a Power Indicator. 4 Switches including reset. Power on/off push button switch. In built motor driving circuitry (4 DC / 2 Stepper motor). Motor on/off push button switch. On board LCD connector. LCD brightness control variable resistor All Pins accessible through male header pins. 5V DC power output male header pins for circuit enhancement. FEATURES: Relay Module SPDT 12V Relay card for switching applications. 8 relays for switching a maximum of 8 peripheral devices. Each relay can be controlled separately. Protection against Back EMF is also provided using diodes and transistor for switching. Separate 8 pin connector for 8 relays. LED for each relay to show which relay is switching. Pull up provided for better operation. APPLICATIONS: Switching applications. Motor control. (4 motors) Separating circuits working at different voltage levels. To Download more details, click on below links: AVR Dev board Datasheet AVR Dev Board Manual Relay Module Datasheet
