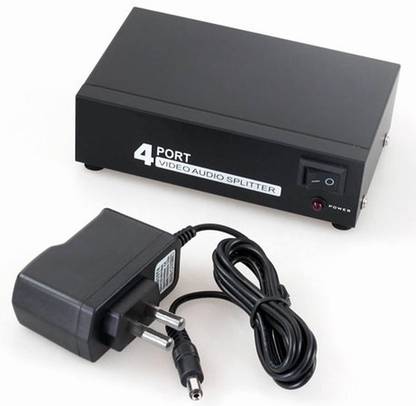

TRP Traders 4 Way Audio Video AMP Splitter RCA 1 Input & RCA 4 Output Media Streaming Device  (Black)

4 Way Audio Video AMP Splitter RCA 1 Input & RCA 4 Output Note: Splitter and switch are different and each works in one way. A splitter is one input to multiple outputs at the same time and all outputs are of the same (called 1x2, 1x4, 1x4...etc.); a switch is usually multiple inputs, one output (called 2x1, 3x1, 4x1, 4x1...etc.). Choose a splitter if you mean to send one AV signal to multiple TVs, or choose a switch if you want to connect multiple AV source devices to one TV. This AV splitter amplifies and distributes input AV signal to max four identical, synchronized outputs. It allows you to connect single video device with AV out (such as Well, DVR, XBOX, DVD, PS2, Cable Box) to multiple TV's at the same time. Ideal for home entertainment, education, security system, and public system or video broadcast system. Specifications: 1. Video ? Input level Resistance: VS 0.4-1.0Vp-p/75O ? Output level Resistance: VS 0.4-1.0Vp-p/75O ? Bandwidth: 50Hz-5.5MHz ? Input Connector: 1 way ? Output Connectors: 4 ways 2. Audio ? Input level Resistance: 2V(RMS)/47KO ? Output level Resistance: 2V(RMS)/1KO ? Frequency: 10Hz-20KHz,0db ? Input Connector: 1 way (R+L) ? Output Connectors: 4 ways (R+L) Package Include: 1x 4 Way Audio Video AMP Splitter RCA 1 Input & RCA 4 Output
