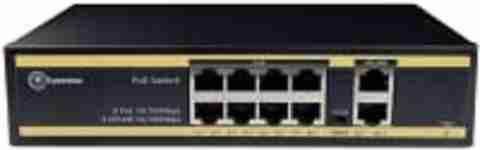

Trueview 8-Port POE Switch for Network CCTV Camera Security Camera

Trueview 8-Port POE Switch for Network CCTV Camera Security Camera  (8 Channel)

Price: Not Available
Currently Unavailable
Warranty
2 Year Brand Warranty
Highlights
  • For Digital Video Recorder Use
  • No of Channels: 8
Description
CCTV Extend:1-8 port supports 250M meters long-distance power supply (recommended cat- 5 or above) ° VLAN: Isolating ports 1-8 to each other can effectively suppress network storms and improve network performance. ° AI QoS: Prioritize the identified video data to make the video transmission smoother. ° AI PoE: Automatically detects the power receiving port, finds the dead device, and restarts the device after power off. ° Support wireless access points (APs) and network surveillance cameras via Cat 5 cables; ° QOS: Prioritize the identified video data to make video transmission smoother ° Support IEEE802.3af/at standard PD device? ° Supports uplink port auto-flip (Auto MDI/MDIX) ° Adopt store-and-forward exchange mechanism ° With power circuit protection, it can protect the security of the back-end equipment; ° Zero configuration feature power is automatically supplied to the adaptive device; ° No fan design to achieve energy saving and environmental protection; ° Support port no link power-saving function;
Read More
Specifications
General
Sales Package
  • One Main unit of 8 Port POE Switch
Model Number
  • T38102
Number of Channels
  • 8
Camera Type
  • 8 Port POE Switch
Video Output
  • Transfer Rate 100Mbps full Duplex?10 or 100Mbps Half Duplex
Video Recording Resolution
  • Network protocol and standard IEEE 802.3i? IEEE 802.3u?IEEE 802.3x?IEEE 802.3af, IEEE 802.3at
Video Recording Frame Rate
  • Support IEEE802.3af/at standard PD device
Product Details
HDD Available
  • No
Power Source
  • AC
Remote Connectivity
  • IP
Power And Connectivity Features
Network Interface Type
  • 8 10/100Mbps PoE RJ45 port ( Port 1~ port 8? 2 10/100/1000Mbps RJ45 port uplink(Port9~port 10)
Number of USB Ports
  • 8
Number of POE Ports
  • 8
Power Requirement
  • Max power for single port 30W, Internal power adapter?96W
Power Consumption
  • 96 W
Other Power Features
  • CCTV Extend:1-8 port supports 250M meters long-distance power supply (recommended cat- 5 or above)
Additional Features
Operating Temperature
  • Operating Temperature?0°~40°C degree C
Weather Durability Standards
  • Operating Humidity?10%~ 90%?Non-condensing
Backlight Balance
  • Yes
Model Name
  • 8-Port POE Switch for Network CCTV Camera
Dimensions
Width
  • 184 mm
Height
  • 94 mm
Depth
  • 27 mm
Warranty
Warranty Summary
  • 2 Year Brand Warranty
Warranty Service Type
  • Repair or Replacement
Covered in Warranty
  • Repair or Replacement
Not Covered in Warranty
  • Physical Damage
Domestic Warranty
  • 2 Year
International Warranty
  • 6 Months
