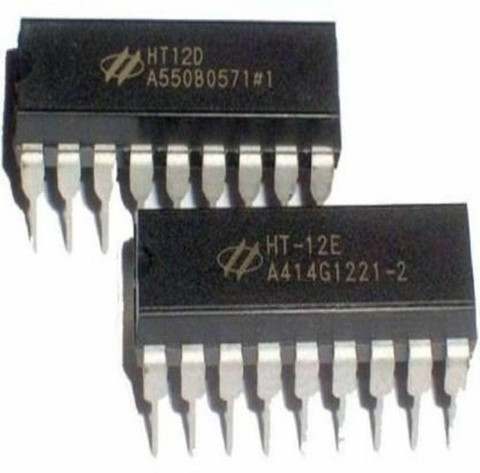

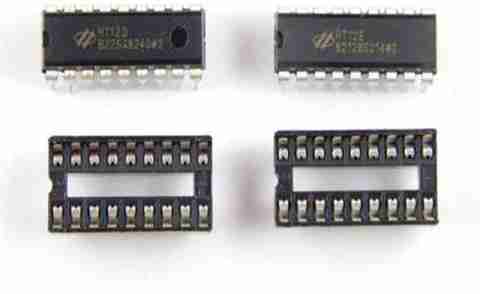

TRUSTECH Ht12E and Ht12D Encoder Decoder Pair With Base Electronic Components Electronic Hobby Kit

The HT12E encoder is designed for remote control system applications. It will interface to RF transmitter modules to create a secure single or multiple channel RF remote control transmitter. The oscillator is configured simply with the addition of a resistor. It is capable of encoding information which consists of N address bits and 12-N data bits. Each address/data input can be set to one of the two logic states and The HT12D decoder is a CMOS LSI for remote control system applications. It will interface to RF receiver modules to create a secure single or multiple channel RF remote control receiver. The decoder receives serial addresses and data from a programmed encoder that are transmitted by a carrier using an RF or an IR transmission medium. The decoder compares the serial input data three times continuously with its local addresses
