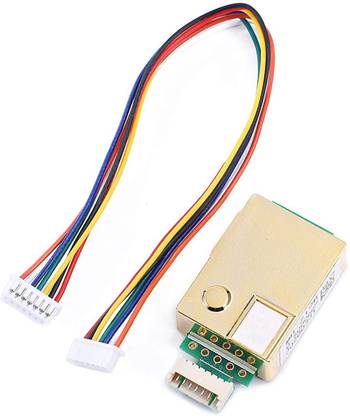

TRUSTECH MH-Z19B Infrared Carbon Dioxide Monitor Sensor CO2 Detection Sensor Module UART PMW Wave Output 0-5000ppm+Cable Electronic Components Electronic Hobby Kit

MH-Z19B carbon dioxide gas sensor (hereinafter referred to as the sensor) is a general-purpose smart small-scale sensor that uses non-dispersive infrared (NDIR) principle to detect the presence of CO2 in the air, with good selectivity and anaerobic Gas dependence, long life and other characteristics; built-in temperature compensation; at the same time with serial output, analog output and PWM output, easy to use. The sensor is a high-performance sensor that combines mature infrared absorption gas detection technology with precise optical path design and sophisticated circuit design. Parameters: Product model number: MH-Z19B Gas Detection: Carbon Dioxide Supply voltage: 4.5~5.5V DC Average current: <20mA (@5V power supply) Peak current: 150 mA (@5V supply) Interface level: 3.3V (5V compatible) Measurement range: 0~10000ppm can be selected within the range Warm-up time: 3min Response time: T90<120s Working temperature: 0～50°C Operating Humidity: 0 to 95% RH (non-condensing)
