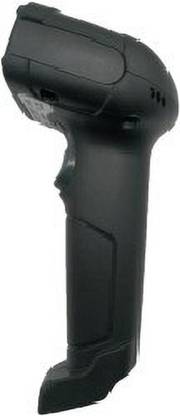

Tvs Electronics BS-C103G BS-C103G CCD Barcode Scanner

Tvs Electronics BS-C103G BS-C103G CCD Barcode Scanner (Handheld)

Price: Not Available
Currently Unavailable
Warranty
1 year
Highlights
  • Supported Interfaces: USB
  • Scanner Type: CCD
  • Housing Type: Handheld
  • Operational Modes: Auto, Manual
Description
This lightweight scanner delivers superior performance and outstanding durability. It is an ideal solution for supermarkets, shopping malls, warehouses, and other environments.
Read More
Product Description
Plastic Material

The use of plastic material provides a robust yet portable solution. It strikes a balance between portability and durability, ensuring that the scanner is both dependable enough to endure regular usage and user-friendly enough for comfort. This material improves the scanner's resistance to potential impacts. Due to the use of plastic, the scanner is more durable overall without sacrificing user comfort, which makes it a great option for a variety of work conditions.

Handheld Design

The portability of the barcode scanner is a top priority in its design. This facilitates scanning and browsing by making the scanner comfortable to grasp. This design choice aims to provide users with flexibility and ease. Whether you're in a retail environment, warehouse, or any other kind of situation, you can reach barcodes with the scanner's convenient handheld form without being limited by a fixed setup. It's a practical and ergonomic solution that offers a flexible and comfortable scanning experience.

CCD Scanner

The imaging mechanism of the scanner is based on a technology called Charge Coupled Device, or CCD. CCD scanners record barcode data using a variety of light-sensitive diodes. Because of its exceptional precision in reading barcodes, this technology is well-suited for applications where accuracy is crucial. Reliable data gathering is ensured by the CCD scanner's capacity to acquire detailed images. The scanner's ability to maintain consistent performance makes it a very viable option for organisations looking for a dependable and precise scanning solution.

350 Scans per Second

Operating at 350 scans per second, the barcode scanner is remarkably quick. In practical terms, this indicates that the scanner can scan and process 350 barcodes in a single second. Its rapid scanning speed significantly reduces the amount of time needed for data acquisition, making it an ideal choice for high-volume scanning applications. You can scan barcodes more swiftly with a scan rate of 350 scans per second, whether you're processing a large inventory or processing consumer transactions at the checkout.

Specifications
Performance Features
Scan Rate
  • 350
Maximum Motion Tolerance
  • 50 inch/sec
Pitch Tolerance
  • 58 degree
Skew Tolerance
  • 70 degree
Minimum Depth Of Field
  • 60.1274019 mm
Maximum Depth Of Field
  • 200.5304 mm
Roll Tolerance
  • 359 degree
Resolution
  • 4 Mil
Inclination Scan Angle
  • 360 degree
Elevation Scan Angle
  • 360 degree
Maximum Light Immunity
  • 10 lx
Warranty
Warranty Summary
  • 1 year
Service Type
  • Customer to bring the product at a service center
Covered in Warranty
  • One year
Not Covered in Warranty
  • Damaged
Domestic Warranty
  • 1 Year
In The Box
  • Scanner, USB Cable, Quick Reference Guide
General
Brand
  • Tvs Electronics
Model Number
  • BS-C103G
Supported Interfaces
  • USB
Scanner Type
  • CCD
Housing Type
  • Handheld
Operational Modes
  • Auto, Manual
Color
  • Black
Model name
  • BS-C103G
Character Read Limit
  • 60
Material
  • Plastic
Additional Features
Other Features
  • 1D CCD Imager Scanner With Unsurpassed Penetrability, Scan Speed Of 350 Scans Per Second, Capable Of Scanning 3 Million Barcode, Capable OF Scanning Damaged and Low Contrast Codes
Key Features
  • Processor type - ARM32-bit, Operating Freq. - 24.5 MHz (Internal), Scan rate - Smart detect up to 350 scans/second, Print contrast ratio - 20%, Light level - Visible red light 632 nm LED, Barcode type - Australian Post, Aztec, BPO, Canada Post, Codabar, Codablock, Code 11 Code 39, Code 93, code 128/EAN 128, Dutch Post, EAN.UCC Composite, Interleaved 2 of 5, Japan Post, UPC/EAN, Interfaces - USB, RS 232, USBCOM, Light source - 40,000 hours, MTBF (Calculated) - 80,000 hours, Operating temperature - 10 °C to 50 °C, Storage Temperature - -20 °C to 60 °C, Humidity - 20% to 95% (Non-condensing), ESD - 5,000 Lux max, Drop Durability - Designed to withstand 1.8m drops
Dimensions
Width
  • 3.7 inch
Height
  • 6.6 inch
Depth
  • 2.4 inch
Weight
  • 175 g
Other Dimensions
  • 95mm L * 62mm W * 168mm H
Power Features
Power Source
  • 170mA (working)
Working Current
  • 150 mA
Standby Current
  • 50 mA
Operational Voltage
  • DC+5V±5%
