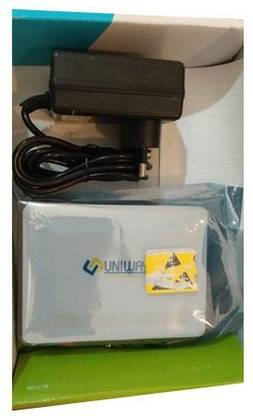

Uniway UW-GE+VOIP+FE (UW-301VP) 1 GE, 1 FE, 1 RJ11 VoIP. Router 2.4 GHz 1200 Mbps Wifi Speed NA Ethernet (Cable Broadband)  (White)

UNIWAY 1GE+1FE+VOIP is a new GPON ONU production of UNIWAY INFOCOM passive optical network terminal series. It provides 1GE, 1FE, 1 RJ11 VoIP, and 1 optical interface, it’s very suitable for home and small business users, can satisfy the FTTH high-speed data transmission. User interface 1 GE, 1 FE, 1 RJ11 VoIP. PON Transmission speed :upstream1.25Gbps/downstream2.5Gbps Network coverage radius: 20KM Optical receive sensitivity:?-28dBm Luminous power:?0dBm Security: ONU authentication mechanism Protocol Compliant with IEEE 802.3ah YD/T 1475-2006 IEEE 802.1D, Spanning Tree IEEE 802.1Q, VLAN IEEE 802.1w, RSTP IEEE 802.3ad (LACP) Ethernet–II, Ethernet-SNAP VLAN Port-based VLAN GVRP IEEE 802.1Q VLAN QOS Backpressure flow control(half-duplex) IEEE 802.3x flow control(full-duplex) Prevent Head Of Line IEEE 802.1p, CoS WR,SP and FIFO queue scheduling algorithm Port rate limit Safety IEEE 802.1x, access control based upon Port; support local and remote RADIUS. CHAP,EAP certification; Storm control, port protection, Management Various management modes such as Web, TELNET Debug function. Environment Operating temperature:0??60?; Operating humidity:10%?85% non-condensing Storage temperature:-40??80?; Storage humidity:5%?95% non-condensing Power supply 110?240VAC 12V/0.5A DC power interface size:2.1mm/5.5mm Power Consumption 12W
