2018 Model 1.5 Ton 3 Star Split Fixed Speed AC
Key Highlights
Key Highlights
Key Highlights
Key Highlights
Key Highlights
Key Highlights
Key Highlights
Key Highlights
Key Highlights
Key Highlights
Wi-Fi Connectivity:
Non Wi-Fi
Voltas 2018 Model 1.5 Ton 3 Star Split Fixed Speed AC (183SZS/183...more
Buy at ₹28,499
Apply offers for maximum savings
₹28,499
Lowest price for you
OR
₹1,020 x 36m
Pay ₹36,703
Exchange offer
Not available at this Pincode
Up to ₹4,850
Change pincode to exchange item
Exchange offer
Up to ₹4,850
Bank offers
Bank offers
₹2,000 off
View EMI offers
Shop with peace of mind
Product highlights
3 Star
Moderately energy-efficient air conditioner
Auto Restart: Yes
Never worry about power cuts again
Capacity: 1.5 Ton
Suitable for large rooms and heavy usage
Dust Filter: Yes
Breathe clean air
Wi-Fi Connectivity: No
Traditional cooling without Wi-Fi
All details
Features, description and more
Specifications
Description
Warranty
Manufacturer info
Show More
Services
Demo Details
Installation and Demo
Installation Details
Split Air-Conditioners:
-Drilling holes into a brick wall to take out the pipes (excluding core cutting)
-Fixing a hole sleeve & cap
-Fixing & connecting indoor and outdoor units with copper pipes & installation of drainage pipes using the standard kit provided by the manufacturer
-Installation of separately purchased power plug, MCB & power stabilizer
-Temperature & gas pressure testing
-Demo of the product
Window Air-Conditioners:
-Installing the AC as per the specifications/requirements
-Connection to separately purchased stabilizer/power point in the range of the power cord provided by the manufacturer
-Demo of the product
Note:
Charges are to be paid directly to the Brand/Jeeves authorized technician at the time of installation.
Technician Visit Details
Authorized Service Engineer will do the following:
-Repair or change the defective part
-Provide replacement to the customer in case part or product is not repairable (only after replacement request approved)
Uninstallation Details
For returns, the uninstallation process includes:
- Authorized service engineer visiting the customer's location
- Uninstalling the product
- Packing the item
- Picking up the product
Performance Features
Panel Display
LED
Turbo Mode
Yes
ISEER
3.51 W/W
Air Flow & Filter Features
Air Flow Direction
Cross Flow
Other Air Flow Features
Air Flow Volume - Indoor: 600 CMH
Dust Filter
Yes
Other Filter Features
Catechin Filter, Silver Ion
Remote Control Features
Night Glow Buttons on Remote
Yes
Other Remote Control Features
Lock, Operation: LCD Remote
General
In The Box
1 Indoor Unit 1 Outdoor UnitConnecting Pipe Remote
Brand
Voltas
Model Name
183SZS/183SZS3
Type
Split
Capacity in Tons
1.5 Ton
BEE Star Rating
3 Star BEE Rating
Color
White
Cooling Capacity
3550 W
Compressor
High EER Rotary
Remote Control
Yes
Refrigerant
R-22
Condenser Coil
Copper
Air Conditioner Technology
Fixed Speed
Wi-Fi Connectivity
No
Dimensions
Indoor W x H x D
870 mm x 600 mm x 355 mm
Indoor Unit Weight
12.5 kg

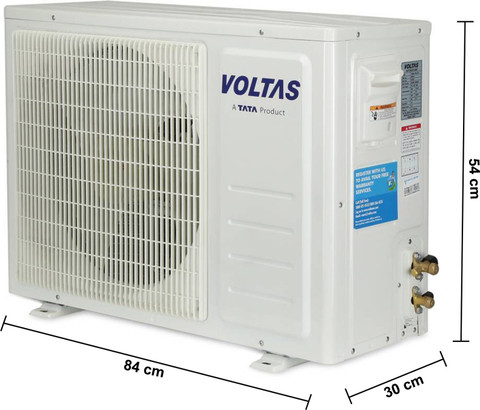

Outdoor W x H x D
840 mm x 540 mm x 300 mm
Outdoor Unit Weight
43 kg
Other Dimensions

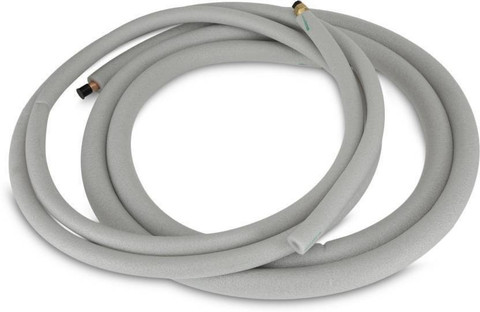

Connecting Pipe: Cu - Cu (1/2 and 1/4 inch), Indoor Unit Gross Weight: 11.5 kg, Connecting Cable: 3 m
Disclaimer
Disclaimer
The manufacturing date can be earlier than the model year.
Power Features
Power Requirement
AC 230 V, 50 Hz
Other Power Features
Rated Current - Cooling: 4.5 A
Convenience Features
Auto Restart
Yes
Timer
Yes
Sleep Mode
Yes
Self Diagnosis
Yes
Additional Features
Anti FungalIDU Fin: Hydrophylic Aluminium (Blue) Copper Tubes: Inner GroovedMaximum Operating Ambient Temperature Range: 50 DegreeC
See more
Voltas 1.5 Ton AC White (183CZA, Copper)
See more
Warranty Summary
1 Year Warranty on Product
Covered in Warranty
All Parts, Excluding Air Filter/ Front Grill & Plastic Parts (After Installation). The Warranty Covers Defective Materials and Workmanship From the Date of Purchase. Beyond the First Year of the Warranty Period, Only the Compressor Repair (Excluding Gas Filled Inside the Compressor) Will be Provided Free of Cost for 5 Years From Date of Purchase. Refrigerant Gas is Having Only One Year Warranty
Not Covered in Warranty
Parts: Air Filter/Front Grill is Not Covered in the Warranty After Installation. The Warranty Does Not Cover Installation/Demonstration. Accessories External to the System. Damage parts. The Product is Not Used According to the Instructions Given in the Instruction Manual. Defects Caused by Improper Use as Determined by the Company Personnel. Modification / Alteration of Any Nature is Made in the Electrical Circuitry or Physical Construction of the Set. Site (Premises Where the Product is Kept) Conditions That Do Not Confirm to the Recommended Operating Conditions of the Machine. Defects Due to Cause Beyond Control Like Lightning, Abnormal Voltage, Acts of God, While in Transit to Service Centers or Purchaser's Residence.
Warranty Service Type
Technician Visit
Generic Name
Air Conditioners
Country of Origin
India
Name and address of the Manufacturer
Voltas house A Dr Babasaheb road Chinchpokli Mumbai 400033
Name and address of the Packer
Voltas house A Dr Babasaheb road Chinchpokli Mumbai 400033
