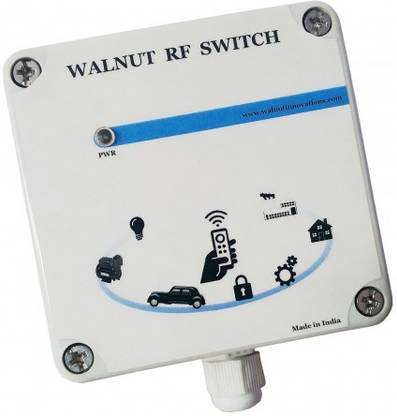

WALNUT RF WIRELESS REMOTE CONTROL SWITCH 4 CHANNEL
This 4 channel wireless remote control operates in the 315/433MHz frequency. Just press slightly the button on the remote, you can control universal DC/AC electrical devices. It can be mainly used to control many kinds of lights or motor open/close, such as motor of pump.
1Control most appliance
2Code type:Learning code
3Operating frequency :315mhz/433mhz
· Wireless control, easy to install
· Control Lights, Motors, Fans, electrically operated Doors/Locks/Windows/Blinds/Cars or Other Appliances
· You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can pass through walls, floors and doors.
· One/several transmitters can control one/several receivers simultaneously.
· Transmitting Frequency: 315MHz / 433MHz
· The wireless receiving controller, with high confidentiality, stable performance, low power consumption characteristic.
Receiver Working Voltage AC85V-250V
Max. Current 7A
Quiescent Current 7mA
Receive Frequency 315MHz/433.92MHz ±150KHz
Receiving Sensitivity -95dB
Output Mode Contact output PCB Size 107*48*21mm Launch Distance 30-100m Working Temperature -10 to +60 centigrade Transmitter Working Voltage DC12V(12V 27A batery) Working Current 12mA Transmitter Frequency 315MHz/433.92MHz ±150KHz Transmitting Distance 30-100m Encoding Type Fixed Code Remote size 50*33*10mm
· Garage door control · Access control system · Home/Mall Automation systems such door/window/curtain control,lights control ect. · Kinds of motor control system
