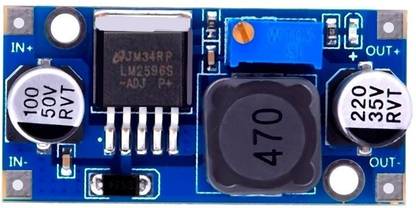

Wanzhow LM2596 DC-DC Step Down Adjustable Converter - Buck Voltage Power Supply Module Converter module 3A Voltage regulator LM2596 Power Supply Output 1.25V-30V Power Supply Module Electronic Hobby Kit range of input voltage: 3.2 V to 40 V dc Power Supply Electronic Hobby Kit

This LM2596 is a voltage switching regulator providing capable of driving a 2A (max.3A) load with excellent line and lad regulation. A assemble circuit with minimum components provides simple various output controlling with internal frequency compensation and a fixed-frequency oscillator. Features: - Dimension: 52 (L) * 20 (W) * 14 (H) mm (with potentiometer) - Input voltage: 4.5-40V - Output Voltage: 1.5-35V (adjustable) - Output current: Rated current 2A maximum 3A (Additional heat sink is required) - Conversion efficiency: Up to 92% (O/P voltage higher the higher the efficiency) - Potentiomenter adjustment direction: Clockwise (increase) Anti-clockwise (decrease) - Switching Frequency: 150KHz - Rectifier: Non-Synchronous Rectification - Module Properties: Non-isolated step-down module (buck) - Short circuit protection: Current limiting since the recovery - Operating temperature: Industrial grade (-40 to +85 ) (output power 10W or less) - Full load temperature rise: 40 - Load regulation: ± 0.5% - Voltage regulation: ± 0.5% - Dynamic response speed: 5% 200uS - Connection mode: Welded plus pin can be directly soldered PCB. - Output ripple: Input 12V Output 5V 3A 60mV (MAX) Input 24V Output 12V 3A 120mV (MAX).
