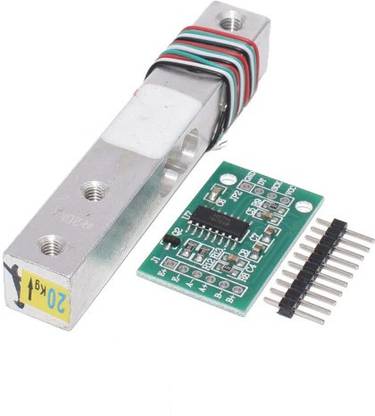

xcluma 20kg Load Cell Weight Sensor with HX711 ADC Converter Electronic Components Electronic Hobby Kit

•Two selectable differential input channels.On-chip active low noise PGA with selectable gain of 3264 and 128.On-chip power supply regulator for load-cell and ADC analog power supply.On-chip oscillator requiring no external component with optional external crystal On-chip power-on-reset. •Simple digital control and serial interface: pin-driven controlsno programming needed.Selectable 10SPS or 80SPS output data rate. •Simultaneous 50 and 60Hz supply rejectionCurrent consumption including on-chip analog power supply regulator: normal operation < 1.5mApower down < 1uA. •Operation supply voltage range: 2.6 ~ 5.5V •Operating Temperature Range:-20 degree ~ +85 degree
