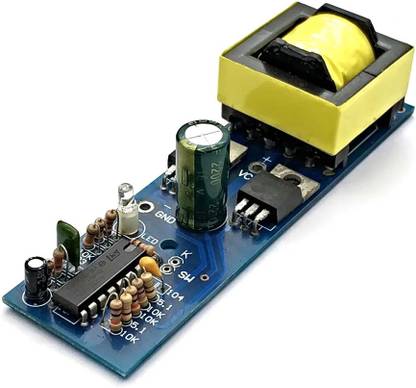

xcluma DC-AC Inverter Boost Module 50 Watt to 150W DC 12V To AC 110V 220V Car Converter Electronic Components Electronic Hobby Kit

• Transform voltage from DC 12V to AC 110V 220V • Output waveform: frequency square wave • Adopt quality PCB board, durable for use • Mainly used for electronic DIY work before the inverter stage • The quiescent current is 0.05A around • Made of quality material, it's durable Specifications: • Product Name: 150W Inverter Boost Module • Material: Metal • Colour: Multicolour • Size: 100x30x20mm/3.94x1.2x0.8in • Power: 150W • Input: DC 12V • Quiescent Current: 0.05A around • Output Waveform: Frequency Square Wave • Output Frequency: 20KHz around • Protection: No Protection The Default Output Voltage Wiring As Follows (Just for Reference) • V0-V2=110V V0-V3=172V • V0-V4=200V V0-V5=220V • V5-V4=20V V5-V3=45V • V5-V2=110V V4-V3=28V • V4-V2=90V V3-V2=62V Note: • The board is high frequency square wave AC output so it cannot drive general inductive electric appliances, such as electromotor, electric fan, coil transformer, etc. • When connected with small load (LED light, phone charger, etc.), please connect to the gear of low output voltage: 172V or 200V. • When work for a long time under large load, suggest to strengthen the cooling fin. • Don't connect the power reversely, and the power supply and power cable should be with enough large current • Don't overload or short circuit the output • High frequency output low voltage measured by multimeter will display higher (it's not correct, not the actual voltage)
