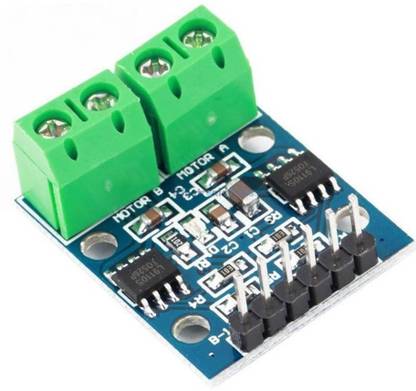

xcluma L9110 H-BRIDGE STEPPER MOTOR DUAL DC MOTOR DRIVER CONTROLLER BOARD  (Blue)

onboard two the L9110S motor control chip the module can simultaneously drive two DC motors or a 4-wire 2-phase stepper motor the module input voltage :2.5-12V the 800mA continuous current output capability per channel Low static work current Power supply voltage: DC2.5-12V Each channel has 800mA continuous current output Low saturation pressure drop TTL/CMOS output level compatible, can be connected directly to the CPU Output built-in clamping diode, apply to the perceptual load Control and drive integrate in IC Have pin high pressure protection function
